Multi lock sockets are a new patented design that fit six different fastener configurations: Square, Torx-r, 6 Point, 12 Point, SAE & Metric, Spline and Ribe.
Multi-Lock Sockets (Available Separately): |
|||
Item No. | Size | Drive | Length |
---|---|---|---|

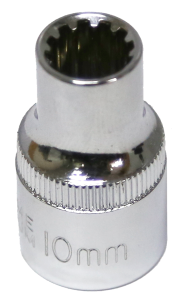

M5410 | 10mm | 1/2" Square | 37mm |
M5411 | 11mm | 1/2" Square | 37mm |
M5412 | 12mm | 1/2" Square | 37mm |
M5413 | 13mm | 1/2" Square | 37mm |
M5414 | 14mm | 1/2" Square | 37mm |
M5415 | 15mm | 1/2" Square | 37mm |
M5416 | 16mm | 1/2" Square | 37mm |
M5417 | 17mm | 1/2" Square | 37mm |
M5418 | 18mm | 1/2" Square | 37mm |
M5419 | 19mm | 1/2" Square | 37mm |
M5420 | 20mm | 1/2" Square | 37mm |
M5421 | 21mm | 1/2" Square | 37mm |
M5422 | 22mm | 1/2" Square | 37mm |
M5423 | 23mm | 1/2" Square | 39mm |
M5424 | 24mm | 1/2" Square | 39mm |
M5426 | 26mm | 1/2" Square | 41mm |
M5427 | 27mm | 1/2" Square | 41mm |
M5428 | 28mm | 1/2" Square | 41mm |
M5430 | 30mm | 1/2" Square | 44mm |
M5432 | 32mm | 1/2" Square | 44mm |
Sizes That Multi-lock Sockets Fit For All The Different Configurations: |
||||||
MM (12 Point) | SAE (6 Point) | Torx (Star) | Spline | Square | WW (12 Point) | E-Torx (Female) (Star) |
---|---|---|---|---|---|---|
10mm | - | T55 | - | - | - | - |
11mm | 7/16" | T60 | M14 | 3/8" | 3/16" | E16 |
12mm | - | - | - | - | - | - |
13mm | 1/2" | T70 | M16 | 7/16" | 1/4" | E18 |
14mm | 9/16" | - | M18 | - | - | - |
15mm | - | T80 | - | 1/2" | 5/16" | E20 |
16mm | 5/8" | - | - | - | - | - |
17mm | - | T90 | - | - | - | E22 |
18mm | - | - | - | 5/8" | 3/8" | - |
19mm | 3/4" | T100 | - | - | - | E24 |
20mm | - | - | - | - | - | - |
21mm | - | - | - | - | 7/16" | - |
22mm | 7/8" | - | - | 3/4" | - | - |
23mm | - | - | - | - | - | - |
24mm | 15/16" | - | - | - | 1/2" | - |
26mm | - | - | - | - | 9/16" | - |
27mm | 1.1/16" | - | - | - | - | - |
28mm | - | - | - | - | 5/8" | - |
30mm | 1.3/16" | - | - | 1" | 11/16" | - |
32mm | 1.1/4" | - | - | - | - | - |
