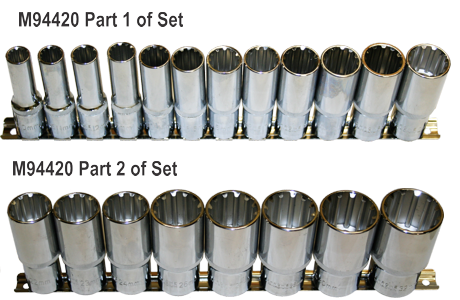

20 Piece 1/2 Inch Drive Multi Lock Deep Socket S On Rail 10-32mm
MPN:
M94420
Barcode:
9322159944204
Multi lock sockets are a new patented design that fit six different fastener configurations: Square, Torx-r, 6 Point and 12 Point, SAE and Metric Hex, Spline and Ribe.
10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 21mm, 22mm, 23mm, 24mm, 26mm, 27mm, 28mm, 30mm, 32mm Multi-Lock Sockets 1/2" Drive.
Multi-Lock Sockets (Available Separately): |
|||
| Item No. | Size | Drive | Length |
|---|---|---|---|
| M5410L | 10mm | 1/2" Square | 76mm |
| M5411L | 11mm | 1/2" Square | 76mm |
| M5412L | 12mm | 1/2" Square | 76mm |
| M5413L | 13mm | 1/2" Square | 76mm |
| M5414L | 14mm | 1/2" Square | 76mm |
| M5415L | 15mm | 1/2" Square | 76mm |
| M5416L | 16mm | 1/2" Square | 76mm |
| M5417L | 17mm | 1/2" Square | 76mm |
| M5418L | 18mm | 1/2" Square | 76mm |
| M5419L | 19mm | 1/2" Square | 76mm |
| M5420L | 20mm | 1/2" Square | 76mm |
| M5421L | 21mm | 1/2" Square | 76mm |
| M5422L | 22mm | 1/2" Square | 76mm |
| M5423L | 23mm | 1/2" Square | 76mm |
| M5424L | 24mm | 1/2" Square | 76mm |
| M5426L | 26mm | 1/2" Square | 76mm |
| M5427L | 27mm | 1/2" Square | 76mm |
| M5428L | 28mm | 1/2" Square | 76mm |
| M5430L | 30mm | 1/2" Square | 76mm |
| M5432L | 32mm | 1/2" Square | 76mm |
Sizes That Multi-lock Sockets Fit For All The Different Configurations: |
||||||
| MM (12 Point) | SAE (6 Point) | Torx (Star) | Spline | Square | WW (12 Point) | E-Torx (Female) (Star) |
|---|---|---|---|---|---|---|
| 10mm | - | T55 | - | - | - | - |
| 11mm | 7/16" | T60 | M14 | 3/8" | 3/16" | E16 |
| 12mm | - | - | - | - | - | - |
| 13mm | 1/2" | T70 | M16 | 7/16" | 1/4" | E18 |
| 14mm | 9/16" | - | M18 | - | - | - |
| 15mm | - | T80 | - | 1/2" | 5/16" | E20 |
| 16mm | 5/8" | - | - | - | - | - |
| 17mm | - | T90 | - | - | - | E22 |
| 18mm | - | - | - | 5/8" | 3/8" | - |
| 19mm | 3/4" | T100 | - | - | - | E24 |
| 20mm | - | - | - | - | - | - |
| 21mm | - | - | - | - | 7/16" | - |
| 22mm | 7/8" | - | - | 3/4" | - | - |
| 23mm | - | - | - | - | - | - |
| 24mm | 15/16" | - | - | - | 1/2" | - |
| 26mm | - | - | - | - | 9/16" | - |
| 27mm | 1.1/16" | - | - | - | - | - |
| 28mm | - | - | - | - | 5/8" | - |
| 30mm | 1.3/16" | - | - | 1" | 11/16" | - |
| 32mm | 1.1/4" | - | - | - | - | - |
| Part Number | |
|---|---|
| MPN | M94420 |
| Drive | |
|---|---|
| Drive | 1/2 Inch Drive |
| Brand | |
|---|---|
| Brand | T&E TOOLS |
