- Digital display gives you a real time indication of system pressure
- Anti-cycle Protection
- Dry run protection with auto restart function that tests for water availability every 24hrs
- Anti-seize function if pump has not operated for last 24 hours
- Controller automatically restarts pump after a power failure
- Easy assembly and removal using push-n-connect fitting with U clip
- Complies to AS/NZ 4020 drinking water standard
- Over pressure protection turns pump off when 10 bar is reached
- Overload protection
Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Pressure System |
| Suitable For | Clean Water |
| Bar | 4.4 |
| Approval | Drinking Water Approval |
| Amps | 4 |
| Flow Range Category | a. 0 - 99 L/min |
| Flow Rate (L/min) | 62 |
| Float | No |
| Hp | 0.8 |
| kPa | 441 |
| Kilo Watts | 0.6 |
| Max Flow (L/min) | 62 |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) | 45 |
| Port Size Inlet | 1" BSPF inlet |
| Port Size Outlet | 1" BSPM outlet |
| Powered | Electric |
| Taps | 6 |
| Volts | 240 |
| Warranty (months) | 24 |
| Watts | 600 |
Description

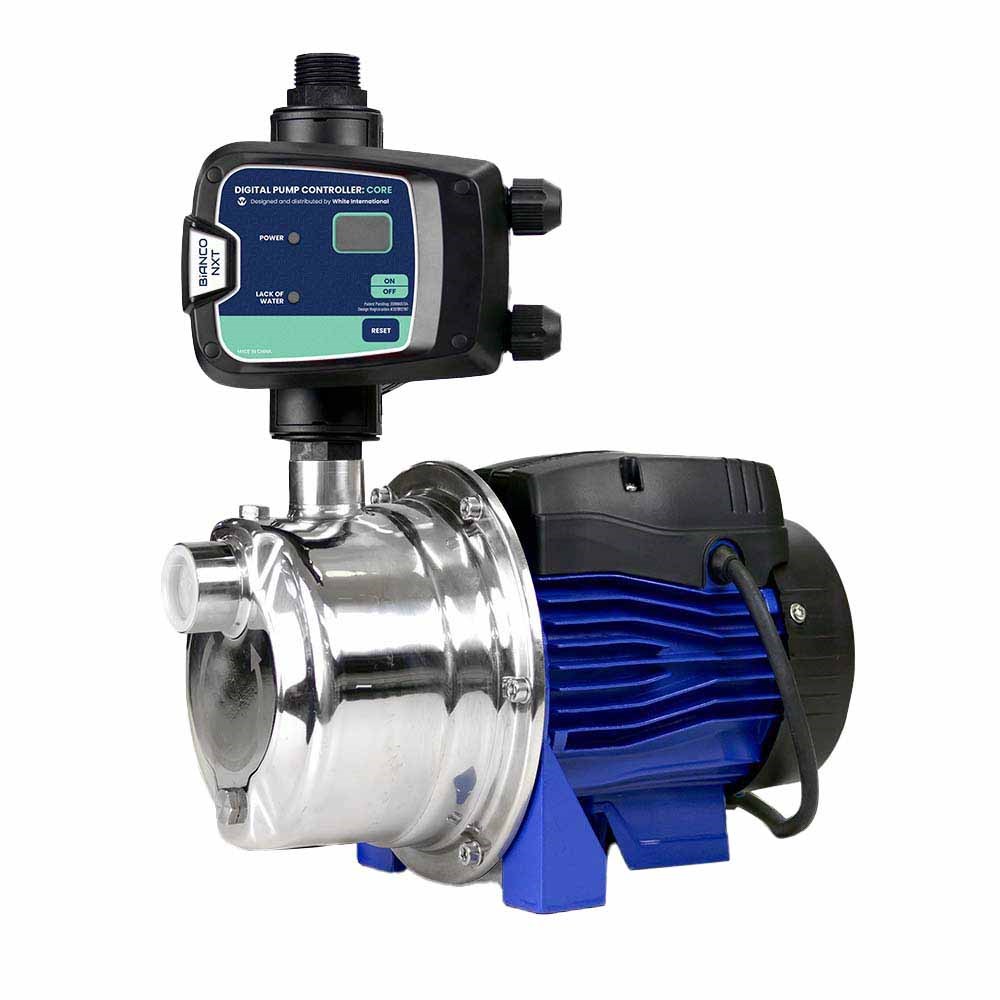

Bianco Stainless Steel Surface Mounted - Jet Pump with nXt Intelligent 1 mode controller
Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.
0.6kW, 0.8hp, 240V, max hd 45m, max flow 62L/m, 6 taps
Ports 1" BSPF In, 1" BSPM Out
2 Year Bianco Pumps Warranty
Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.
0.6kW, 0.8hp, 240V, max hd 45m, max flow 62L/m, 6 taps
Ports 1" BSPF In, 1" BSPM Out
2 Year Bianco Pumps Warranty
Controller
This pump includes the Bianco iCON nXt series of pump controller.
The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
Controller Features
Controller Flow Curve
Controller Brochure
View Brochure
| nXt Controller Data | |
|---|---|
| Function | ON/OFF |
| Modes | 1 |
| Size | 1.5Kw |
| Rated Voltage | 220-240V AC |
| Max Amps | 10 |
| Rated Power | 1500w |
| Rating | IP65 |
| Union Size | 1" |
| Start Pressure | 2.2 bar (32PSi) |
| Stop Pressure | on no flow |
| Max Pressure | 10 bar (145PSI) |
| Max Liquid Temp | 40°C |
| Cable to Pump | Plug and Play |
| Flylead for Pump | When sold as control only |
| Power Cable | 10AMP |
| Communication | - |
| Accessories (Sold Separately) | - |
| 1 ¼” Union Kit | |
