- Light and compact - easy to use
- Great value pump for light duties and occasional use
- Automatic operation controlled by a fl exible fl oat
- Quality pump materials and construction to ensure reliable operation
- Multi-fi t hose tail
- Not intended for continuous operation such as water features
- Not suitable for potable water applications
- Not suitable for use with biological wastewater
Technical Specifications
| Brand | Bianco Pumpz |
| Flow Rate (L/min) | 250 |
| Max Head (m) | 6.3 |
| Volts | 240 V |
Description

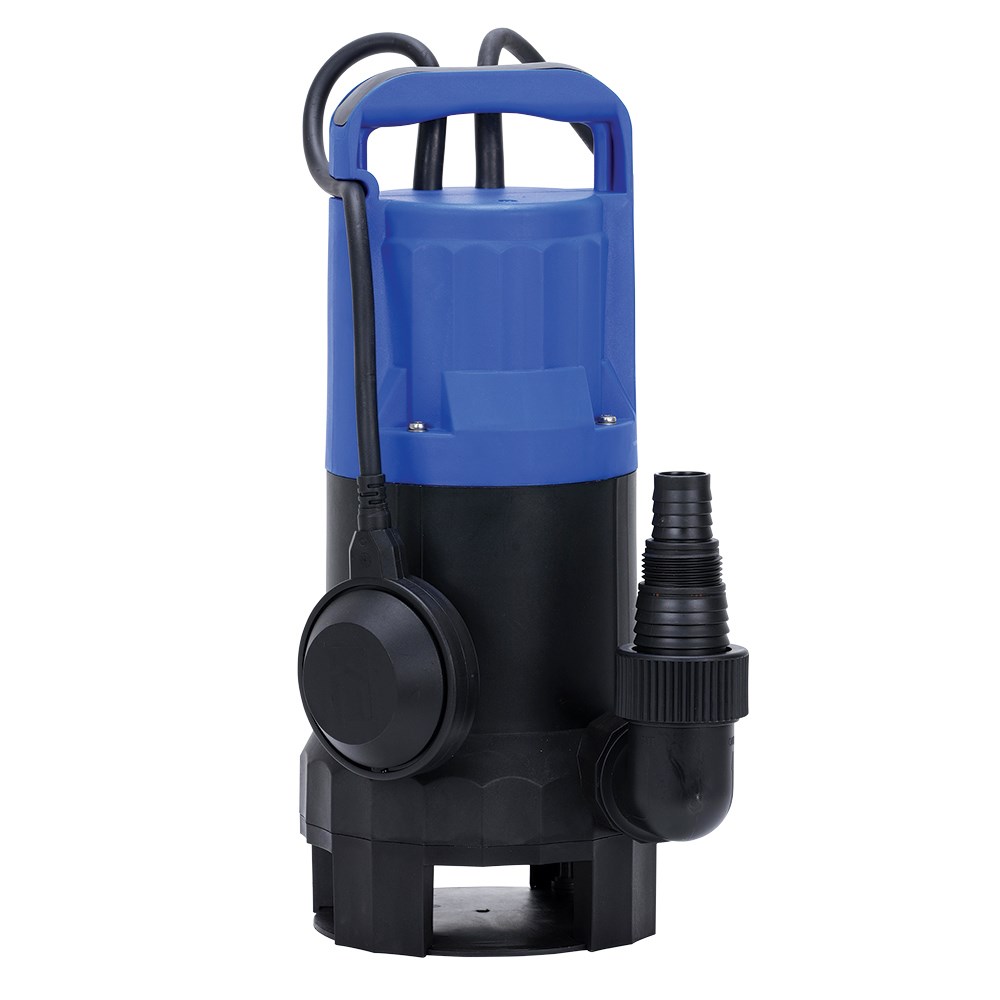

The Bianco SUB550 is a light duty, occasional use vortex style pump
The generous internal clearances enable this pump to cope with lightly contaminated water containing soft solids such as leaves or other non-abrasive organic materials
If you have a general de-watering task, the SUB550 is a great choice
Benefits:
Features:
Cautions
Hydraulic Performance
| Technical Data | |
|---|---|
| RATED POWER (W) | 550W |
| MAX. FLOW [LPM] | 265 lpm |
| RATED FLOW [M3/H] | 8 m3/h |
| MAX. HEAD [M] ` | 8m |
| WORKING TEMPERATURE | < 40°C |
| LIQUID TEMPERATURE | 2°C - 35°C |
| MAX. IMMERSION DEPTH | 3m |
| MAX. DIA. OF PARTICLE | < 35mm |
| MOTOR DUTY | Continuous S1 |
| MOTOR PROTECTION LEVEL | Class F |
| MOTOR PROTECTION | Auto resetting thermal overload |
| CAPACITOR | 10uF |
| MOTOR SHAFT | 304 Grade S/S |
| RATED VOLTAGE | 220V-240V 50 Hz |
| RATED CURRENT | 2.7 A @ 230V |
| POWER CABLE | TYPE XX |
| LENGTH OF POWER CABLE | 10m |
| PROTECTION CLASS | IPX8 |
| IMPELLERS | 1 of Glass reinforced (25%) Nylon |
| HYDRAULIC BODY | Glass reinforced (30%) Polypropylene |
| INLET STRAINER | Open |
| OUTLET | 1½” BSP |
| SEALS | Lip seal |
| AUTOMATION FUNCTION | Flexible Float Mechanism |
| NET WEIGHT (KG) | Pump only 4.9kg |
| PACKAGE DIMENSION | 200 L x 165 W x 385 H (mm) |
Specifications
| Part Number | |
|---|---|
| MPN | BIA-SUB550-SUB-DRAIN-PUMP |
| Brand | |
|---|---|
| Brand | BIANCO |
