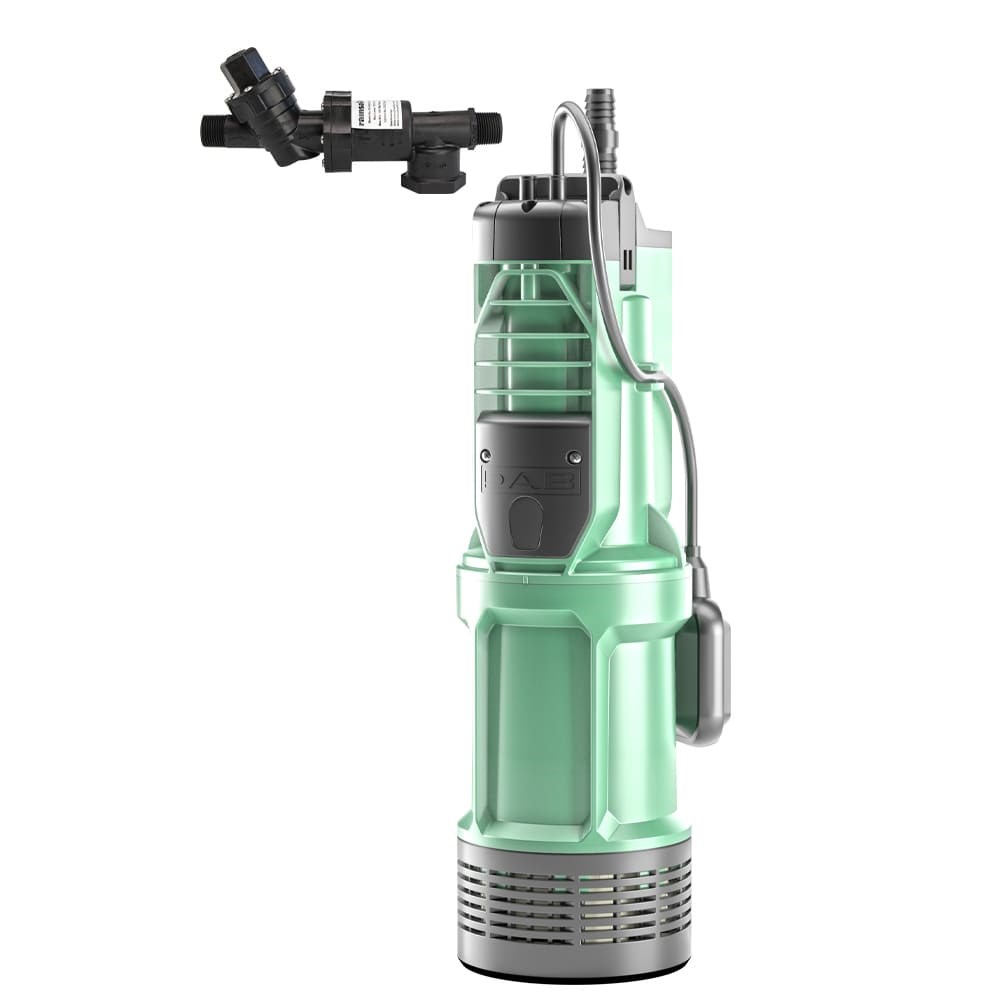

RS6-DIVERTRON900A - Divertron Submersible Pump with RS6 Changeover Device - Rain Harvesting Kit

Submersible Multi-Impeller Electronic Pump

The DAB Divertron is a submersible pump with integrated on/off electronics for domestic water supply.

Ideal for irrigation and gardening and for the reuse of rainwater, it can be installed inside collecting tanks, wells and tanks with a maximum immersion depth of 12 metres.

• Incorporates an electronic automatic restart pump control with dry run protection
• Fully automatic operation
• In-built non-return valve and flow sensor
• Supplied wired and ready to install
• Quiet operation
• Simple installation
• A small pressure tank (2-8L) is recommended
• Does not require external pump control

Performance Curve

Drinking Water Approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water.

Dimensional Drawing (mm)

Model	A	H	H1	H2	H3	Packing Dimensions			Weight Kg
						L	W	H
DAB-DIVERTRON900	Ø 160	536	517	503	596	550	195	250	11
DAB-DIVERTRON900A
