- Proven components
- Requires no power supply and consumes no electrical energy
- Designed to operate with pumps and mains up to 1000 kPa (145 psi)
- Pump flows to 105 l/m, mains flows to 40 l/m (at 500kPa mains)
- Designed to further save water resources by reducing incoming mains to 200 kPa
- Requires no weather proofing
- Can be mounted any distance from the pump underground or inside a tank
- UV stabilised technopolymer for long life and good looks
- All Rainsaver MK6 pumps are independently controlled to regulate flows and pressures whilst protecting the pump against voltage fluctuations, loss of water and incorporate a 24 hour automatic pump restart
- WaterMark approved components for connection to all Town Water supplies. Safe against water borne bacteria, dezincification and lead poisoning Australian owned and designed
- Digital display gives you a real time indication of system pressure
- Anti-cycle Protection
- Dry run protection with auto restart function that tests for water availability every 24hrs
- Anti-seize function if pump has not operated for last 24 hours
- Controller automatically restarts pump after a power failure
- Easy assembly and removal using push-n-connect fitting with U clip
- Complies to AS/NZ 4020 drinking water standard
- Over pressure protection turns pump off when 10 bar is reached
- Overload protection
Technical Specifications
| Brand | Bianco Rainsaver |
| Product Type | Pressure System |
| Suitable For | Rainwater Harvesting |
| Bar | 4.6 Bar |
| Flow Range Category | a. 0 - 99 L/min |
| Flow Rate (L/min) | 60 L/min |
| Hp | 0.8HP |
| kPa | 476kPa |
| Kilo Watts | 0.6 kW |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) | 47 m |
| Position | 3/4" Rainsaver |
| Port Size Inlet | 3/4" Rainsaver |
| Powered | Electric |
| Taps | 6 Taps |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 600 |
Description

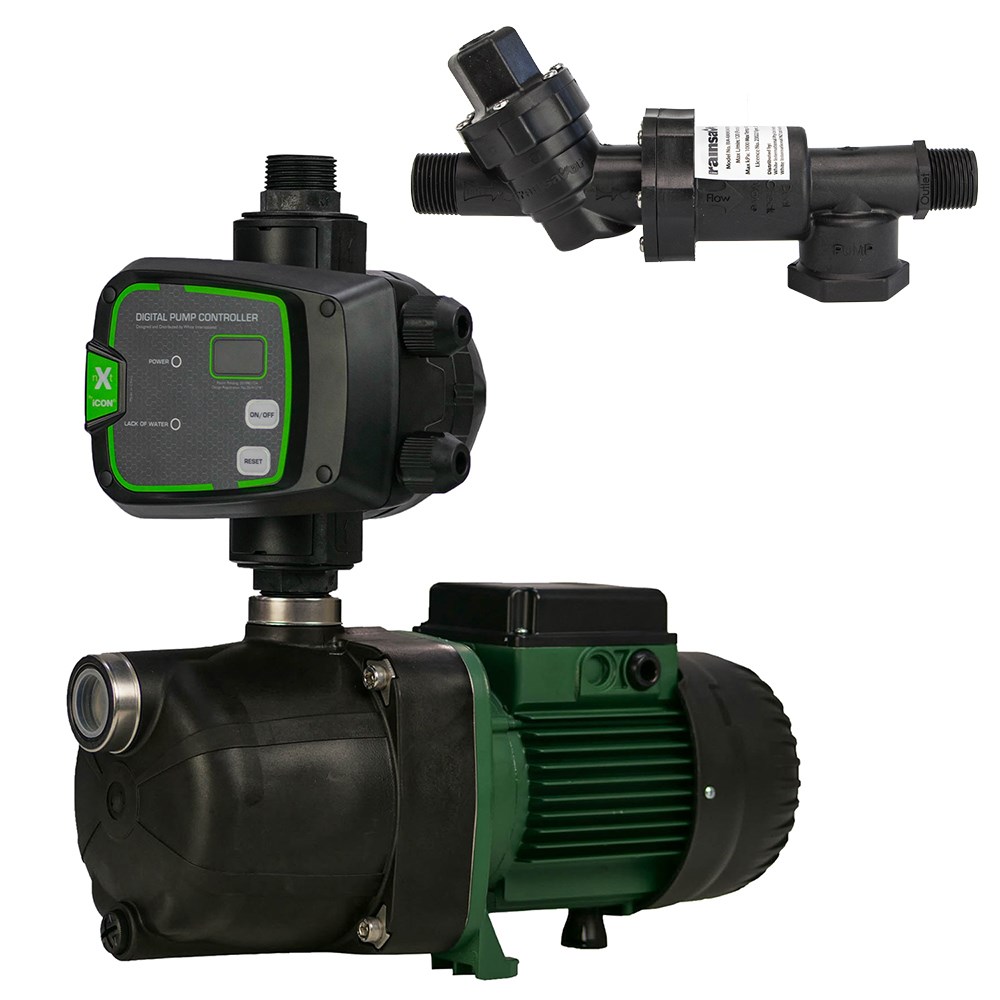

Rainsaver MK6 and DAB-JET82NXT 600W Electronic Self Priming Pump with Auto Restart
6 taps, 47m hd, 60L/m
6 taps, 47m hd, 60L/m
Controller
This pump includes the Bianco iCON nXt series of pump controller.
The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
Controller Features
Controller Flow Curve
Controller Brochure
View Brochure
| nXt Controller Data | |
|---|---|
| Function | ON/OFF |
| Modes | 1 |
| Size | 1.5Kw |
| Rated Voltage | 220-240V AC |
| Max Amps | 10 |
| Rated Power | 1500w |
| Rating | IP65 |
| Union Size | 1" |
| Start Pressure | 2.2 bar (32PSi) |
| Stop Pressure | on no flow |
| Max Pressure | 10 bar (145PSI) |
| Max Liquid Temp | 40°C |
| Cable to Pump | Plug and Play |
| Flylead for Pump | When sold as control only |
| Power Cable | 10AMP |
| Communication | - |
| Accessories (Sold Separately) | - |
| 1 ¼” Union Kit | |
