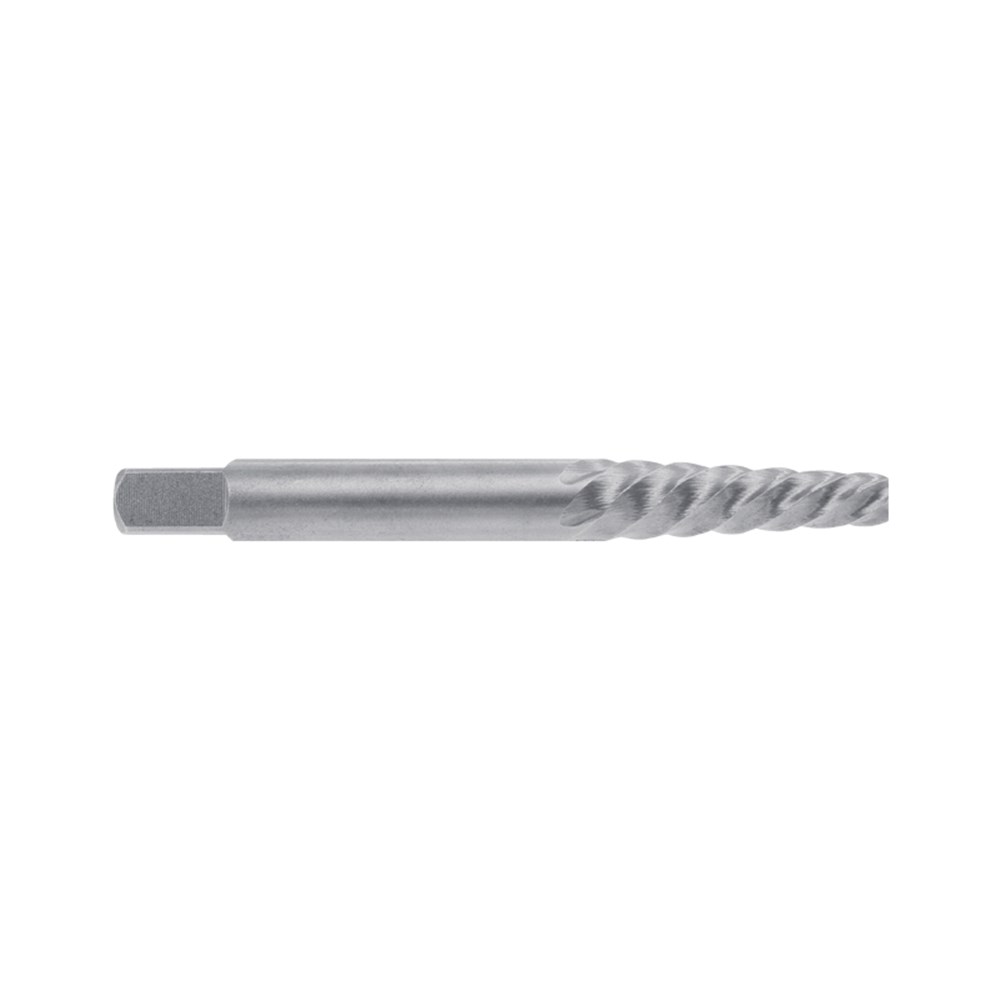

Screw Extractor #4 Carded (8.33mm)

MPN: 9SE04
Barcode: 9342386099096

    Screw Extractor #4 Carded (8.33mm)

    Product Code: 9SE04

    Key Features
    Reverse Tapered Cutting Screw Thread
    Square Head for use with Tapping Handles
    6 Common sizes available
    Technical Specifications
    Brand ALPHA
    Series Alpha
    Diameter (mm) 8.33
    Material HSS
    Barcode 9342386099096
    Category Screw Extractors
    Weight (gr) 39.00
    Box Quantity 20.00
    Carton Quantity 80.00
    Order Quantity 1
    Unit Of Measure
    Box: 20
    Carton: 80
    • Reverse Tapered Cutting Screw Thread
    • Square Head for use with Tapping Handles
    • 6 Common sizes available

    Technical data:

    • Suits pilot drill: 6.35mm, 1/4″
    • Suits bold thread diameter: 10 - 12mm, 3/8 - 1/2″

    Directions for use:

    1. If possible, grind or flatten the head of the damaged bolt or screw.

    2. With a heavy hammer and centre punch, mark the centre of the bolt or screw; this will prevent the pilot drill wandering.

    3. The extractor requires a pilot hole, start with a small Alpha left handed drill bit (e.g. 5/64’’).

    4. If required, drill the hole out larger. It is best to use a left-hand drill for this step, as this may be enough to remove the stud without a screw extractor.

    5. Select the correct size screw extractor for the hole, see table above.

    6. With a tap wrench, turn the screw extractor into the hole in an anti-clockwise direction. The reverse threads force the extractor into the hole until the broken bolt or stud is forced to turn. Continue turning until the stud is removed.
