  3. HSS Tap UNF Taper-5/8x18
Pricelist: T&E Specials Pricelist
Pricelist: T&E Specials Pricelist

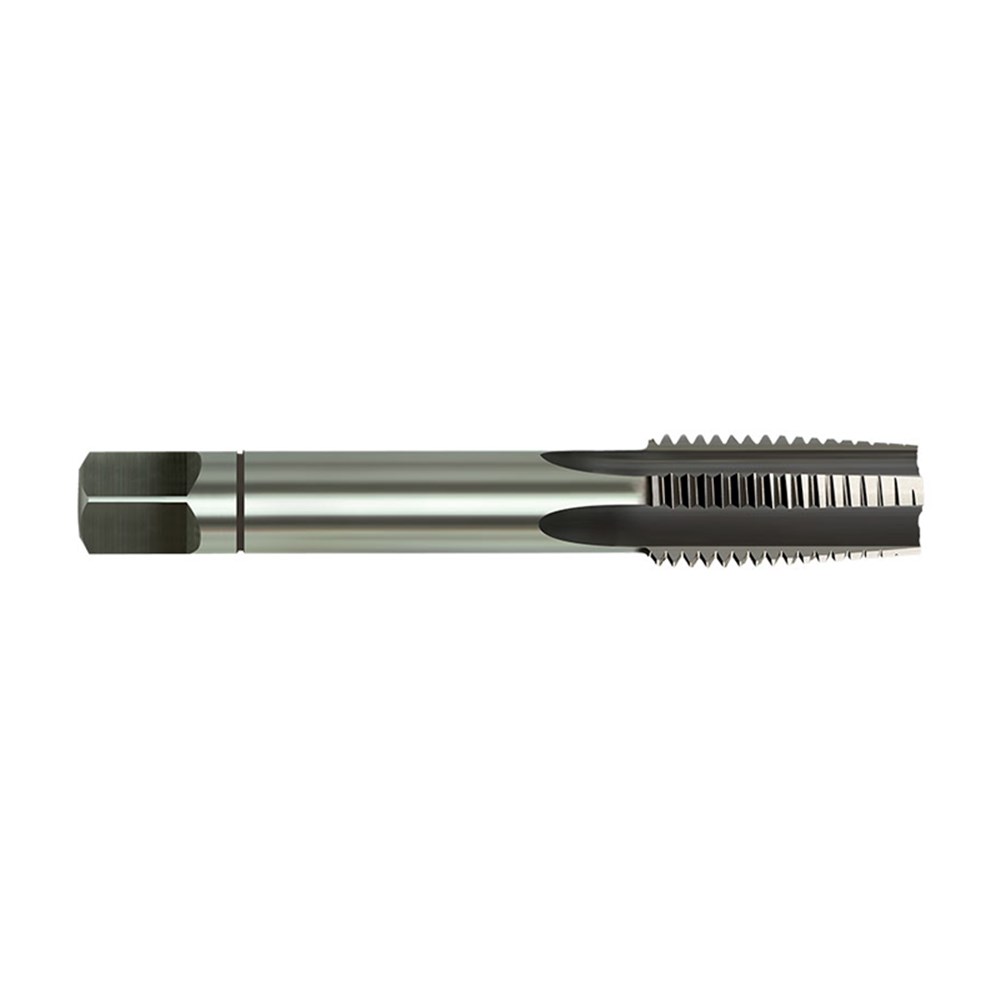

HSS Tap UNF Taper-5/8x18

HSS Tap UNF Taper-5/8x18

(0 review)
$ 104.17 $ 104.17

  • Brand
  • MPN
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

MPN: UNFHT58
Barcode: 9342386039412

    HSS Tap UNF Taper-5/8x18

    Product Code: UNFHT58

    Key Features
    Precision manufactured in Europe to ISO529 standards
    Suitable for hand and machine operation, and are suitable for production
    2N Tolerance for optimum thread fit
    Technical Specifications
    Brand ALPHA
    Subcategory UNF HSS
    Diameter (in) 5/8
    Type of Measure UNF
    Drill Size (mm) 14.5
    Head Type Taper
    Material HSS
    OAL (mm) 102
    TPI 18
    Barcode 9342386039412
    Category UNF HSS
    Carton Quantity 1.00
    Order Quantity 1
    • Alpha HSS Hand Taps are precision manufactured in Europe to ISO529 standards.
    • HSS Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.
    • 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.
    • Suitable for use in Steel, Aluminium, Copper, Brass etc.
    • Always use lubricant. Click here for our range.

    TAPER taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes. Alpha Taper taps can be identified by the single ring on the shaft near the driving square.

    • Diameter: 5/8mm
    • Pitch: 18mm
    • Overall length: 70mm
    • Shaft Diameter: 12mm
    • Drive Square: 9mm
    • Tapping Drill Size: 14.50mm

Specifications

Part Number
MPN UNFHT58
Brand
Brand ALPHA
