MPN:
0106190
Barcode:
4003773040415

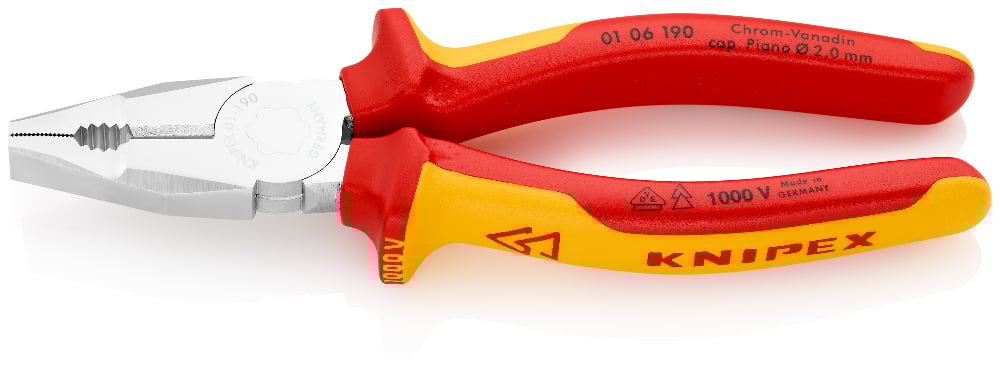

- For heavy duty use due to wear-resistant gripper jaws
- With gripping zones for flat and round material, suitable for versatile use
- With cutting edges for soft, hard and piano wire
- Long cutting edges for thicker cables
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
- Particularly wear resistant gripping jaws; hardness of the gripping jaws approx. 53 HRC
| Technical Description | |
|---|---|
| Article No. | 01 06 190 |
| EAN | 4003773040415 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | insulated with multi-component grips, VDE-tested |
| Weight | 320 g |
| Dimensions | 190 x 58 x 27 mm |
| Standard | DIN ISO 5746 DIN EN 60900 IEC 60900 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Technical Description | |
|---|---|
 Cutting capacities hard wire (diameter) |
Ø 2.5 mm |
 Cutting capacities piano wire (diameter) |
Ø 2.0 mm |
 Cutting capacity copper cable, multiple-stranded |
Ø 13.0 mm |
| Cutting capacity copper cable, multiple-stranded |
25.0 mm² |
| VDE tested | yes |
