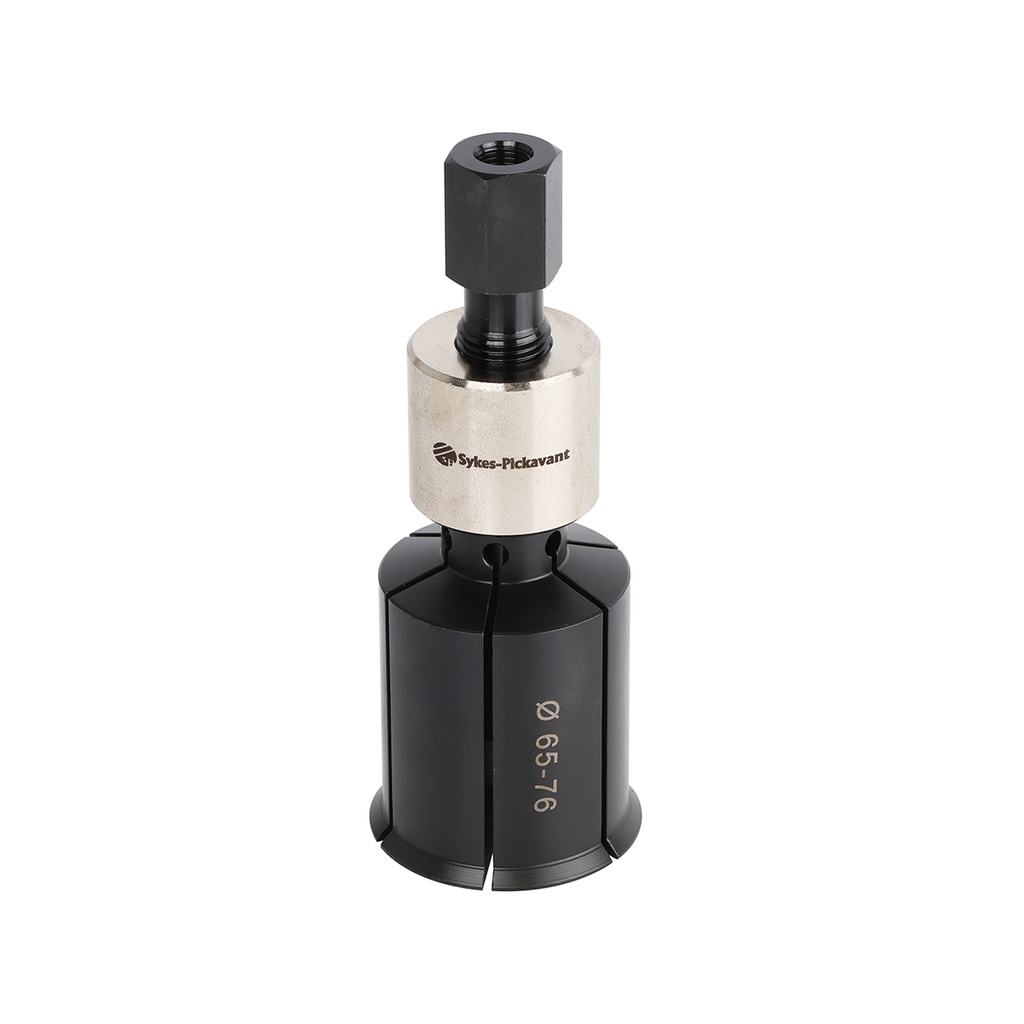

- The 095819 Internal Split Collet Extractor is engineered for precision removal of bearings, gears, oil seals, and pinions from housings where access is only available through the bore’s center.
- Manufactured from high-quality steel, it delivers exceptional durability and reliability for demanding service and repair applications.
- Features & Benefits:
- Blind hole extraction – Enables removal when only a central bore is accessible.
- Split collet mechanism – Expands when tightened, securely gripping the inner surface for extraction.
- ½" UNF fitting – Compatible with the existing Sykes Internal Split Collet Extractor range and other suitable slide hammers.
- Versatile application – Extracts components quickly and efficiently where conventional pullers cannot be used.
- Common Applications:
- Bearing removal – Extracting bearings when the shaft is removed.
- Pilot bearing extraction – Removing pilot bearings from crankshafts.
- Oil seal removal – Extracting seals from housings with limited access.
- Gear removal – Pulling gears from shafts where conventional pullers cannot reach.
ATTRIBUTES
| Barcode | 5056647501467 |
|---|---|
| Specifications | Internal Spread Min-Max: Ø65-76mm Length: 175mm Weight: 2.07kg |
Specifications
| Brand | SYKES-PICKAVANT |
