MPN:
098200
Barcode:
5056647500965
- Min Spread: 56mm
- Max Spread: 210mm
- Adaptor Diameter: 16-31.75mm
- Puller Reach: 490mm
- ISO Bearing Designation: 6212 - 6222, 6308 - 6319, 6405 - 6414

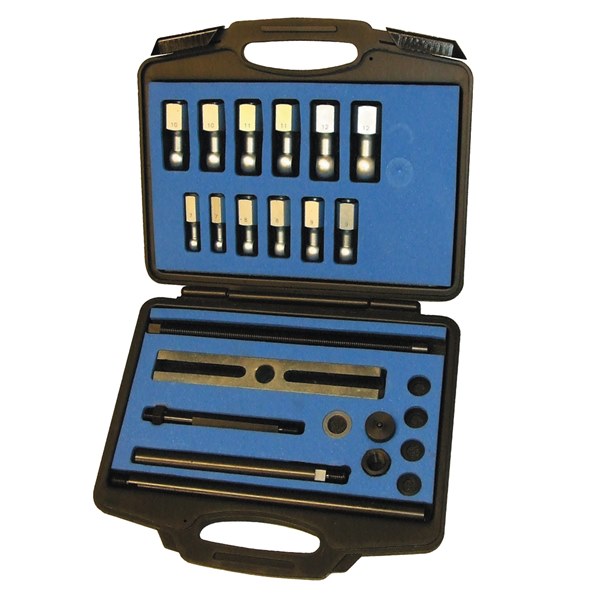

ITEM CONTENTS
| Code | Name | Qty |
|---|---|---|
| 098212 | Beam | 1 |
| 093113 | Screw | 1 |
| 098214 | Thrust Nut | 1 |
| 098213 | Thrust Washer | 1 |
| 098215 | Rod Assembly | 1 |
| 098217 | Rod Extension (195mm) | 1 |
| 098218 | Rod Extension (295mm) | 1 |
| 098227 | Bearing Adaptor No.7 (16mm) | 1 |
| 098228 | Bearing Adaptor No.8 (19mm) | 1 |
| 098229 | Bearing Adaptor No.9 (22mm) | 1 |
| 098230 | Bearing Adaptor No.10 (25mm) | 1 |
| 098231 | Bearing Adaptor No.11 (28mm) | 1 |
| 098232 | Bearing Adaptor No.12 (31.75mm) | 1 |
Specifications
| Brand | SYKES-PICKAVANT |
