- For single, multiple and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm²
- Easy adjustment to the required diameter of solid or stranded wire with knurled screw and lock nut
- For plastic and rubber insulation up to Ø 5 mm or 10 mm² conductor cross-section
- Handles with multi-component grips
- Pliers black, phosphate-treated, head with precision finish
- Length 160 mm
- Net weight 156 g
| Technical Description | |
|---|---|
| Article No. | 11 12 160 |
| EAN | 4003773034964 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with multi-component handles |
| Weight | 156 g |
| Dimensions | 160 x 57 x 19 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Stripping capacities in square millimetres | 010 mm² |
| Stripping capacities (diametre) | Ø 5.0 mm |
| AWG | 8 |

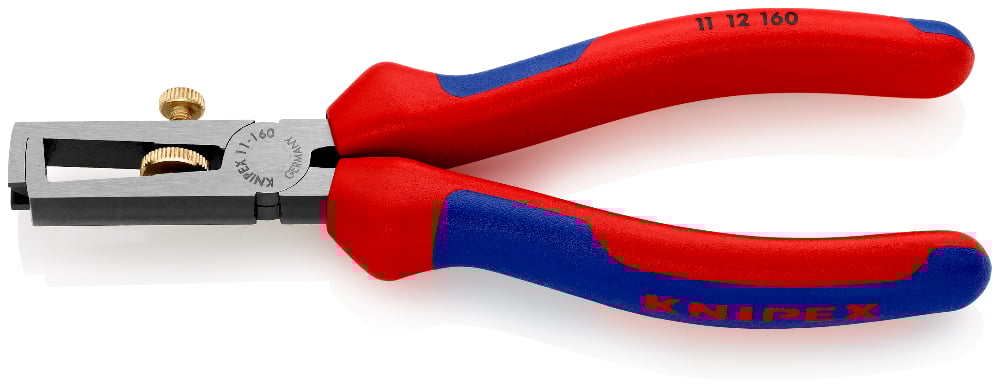

Standard wire strippers for standard insulation
For plastic and rubber insulation materials
As standard wire strippers, the Knipex 11 12 160 are mainly used for wiring frequently laid NYM cable (NYM stands for “standardised cable / PVC wire insulation / sheathed cable“). Fitters who want to wire a large number of sockets in one work step while consistently stripping wires with 1.5 mm², for example, have the right tool to hand to remove the insulation from conductors up to Ø 5 mm or a 10 mm² conductor cross-section. These pliers are also the right tool for stripping flexible conductors in rubber cable as connection or extension lead.
Proven knurled screw for adjusting the conductor cross-section
The pliers are set to the conductor cross-section using the knurled screw so that only the insulation is cut into without damaging the conductor. The knurled screw is secured with the inset lock nut to maintain the precise adjustment even during longer periods of work. This simple technology has been tried and tested by electricians for decades.
With strong construction for long tool life, convenient to use
The Knipex 11 12 160 wire strippers are forged from special tool steel and additionally oil-hardened. As a basic protection against rust, the wire strippers are phosphate-treated in black. The head of the pliers has a precision finish. Thanks to this machining and finishing step, when used correctly this prepares the pliers for a long tool life. The multi-component grips are ergonomic and comfortable.
Brief overview
Product Images
Knipex wire strippers: easy to use, useful and strong
Adjustment to the conductor cross-section
Cutting into the insulation
Stripping the insulation
Tough and durable
