- For cutting and stripping solid, multicore and finely stranded conductors with conductor cross-section up to 0.75 mm²
- Pointed head of shears above the wire stripping hole for the accurate cutting of fine wire in confined places
- Easy adjustment to the required diameter of solid or stranded wire with knurled screw and lock nut
- With opening spring
- Wire stripping capacities Ø 0.03-1.0 mm
- Special tool steel, oil-hardened
- Handles with multi-component grips
- Opening spring
- Polished pliers head
- Length 130 mm
- Net weight 75 g
| Technical Description | |
|---|---|
| Article No. | 11 82 130 |
| EAN | 4003773071648 |
| Head | polished |
| Handles | with multi-component handles |
| Weight | 85 g |
| Dimensions | 140 x 76 x 18 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Stripping capacities (diametre) | Ø 0.03 — 1.0 mm |
Cut and strip fine cable and strands
For accurate work on printed circuit boards and for installation work

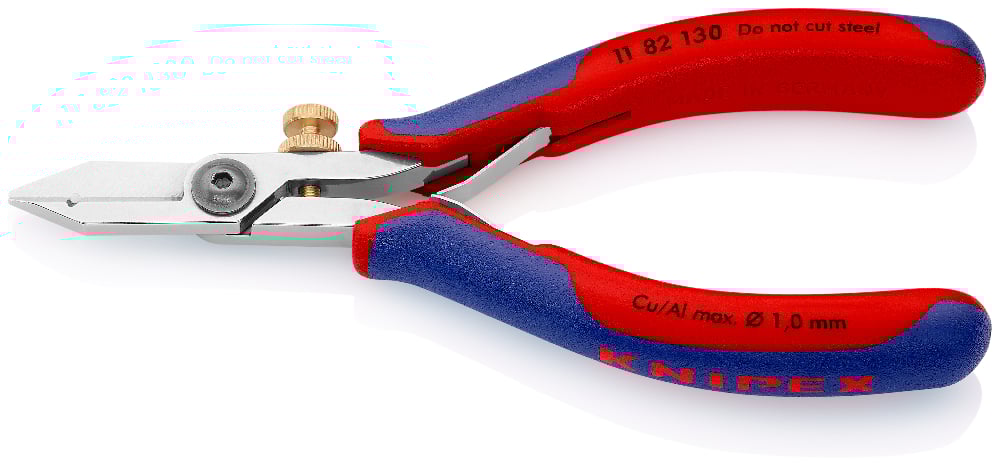

With regard to dimensions, the 11 82 130 wire stripping shears from Knipex weighing just 75 g and with a length of 130 mm fit perfectly in the world of electronics. As with the current and voltage ratings which are much lower than those for electrics, much smaller cable cross-sections and correspondingly finer strands are used in electronics. These can be professionally cut and stripped using the wire stripping shears from Knipex.
Knurled screw with lock nut for adjustment to the conductor cross-section
For very fine conductor cross-sections from a diameter of 0.03 mm, the pliers can be set so accurately using the knurled screw so that only the insulation is cut into and removed without damaging the conductor. The knurled screw is secured with the lock nut to maintain the fine adjustment even during longer periods of work. The cutting function of the shears is not restricted by aligning the wire stripping opening.
Opening spring and multi-component grips
With the wire stripping shears from Knipex, cutting and wire stripping work in electronics is ergonomic and convenient. The integrated opening spring saves the user one hand movement during each cutting and wire stripping operation. The easy to grip multi-component handles mean that the small, light pliers sit comfortably in the hand.
Brief overview
Product Images
Knipex wire stripping shears: light, smooth operating, compact and accurate
Wire stripping shears from Knipex display their qualities when cutting and stripping work is required on fine wire and single conductors (Ø 0.03 - 1.0 mm).
