MPN:
227020
Barcode:
9300784064177
- Special puller for the removal of blind housing bearings without the need to dismantle machinery or remove the running shaft
- Positive seating allows even tension on inner and outer bearings, reducing resistance
- Suitable for Heavy-duty applications
- Stabilizers reduce sideways movement and self center puller
- Spread: 56-220mm
- Reach: 340mm
- Adapter Sizes: 15, 17.4, 20, 25.2, 30, 36.4mm
- Bearing Ranges: 6021 - 6032, 6212 - 6230, 6309 - 6321, 6406 - 6417

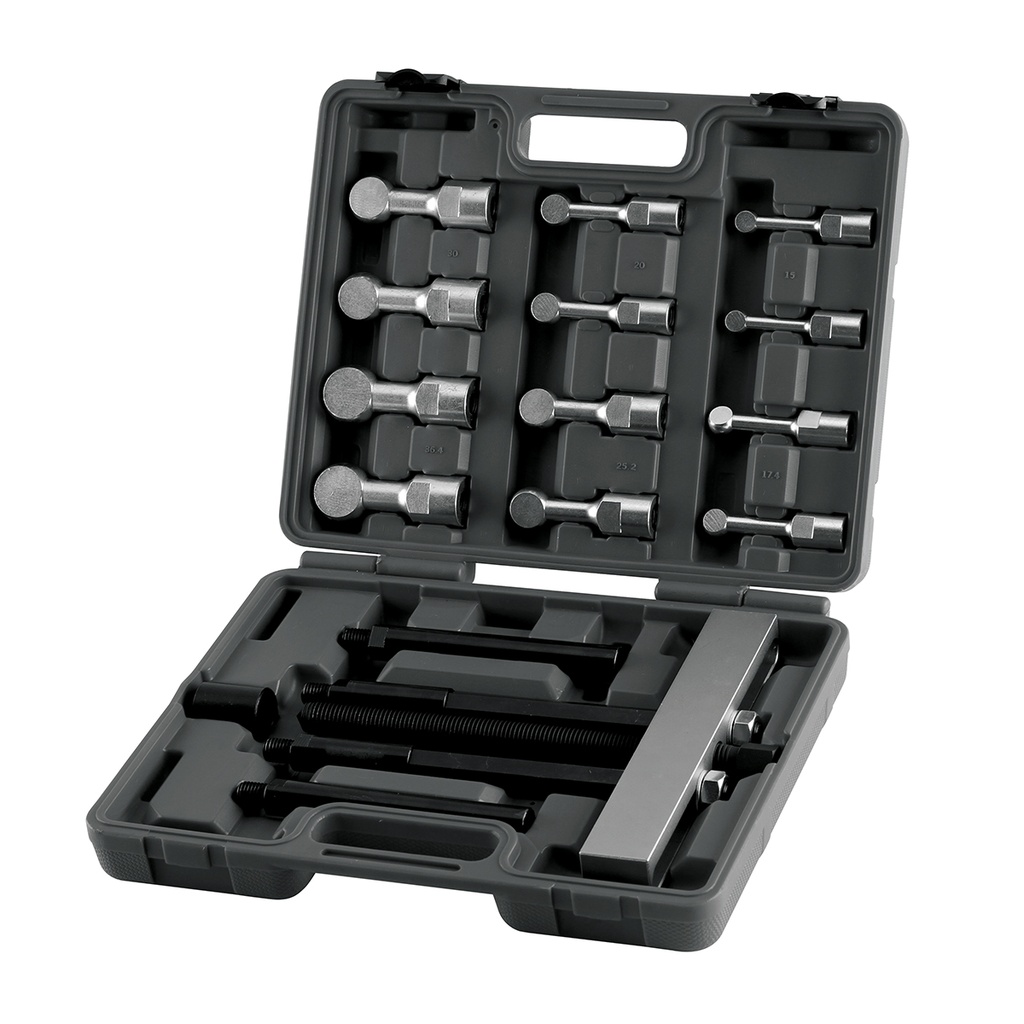

ITEM CONTENTS
| Code | Name | Qty |
|---|---|---|
| 227021 | Twin Beam - 240mm | 1 |
| 227022 | Forcing Screw - 280mm | 1 |
| 227023 | Nose Extension Flat Tip - 40mm | 1 |
| 227024 | Main Rod - 180mm | 1 |
| 227025 | Extension Rod - 150mm | 1 |
| 227026 | Extension Rod - 70mm | 1 |
| 227027 | Adaptor - 15mm | 1 |
| 227028 | Adaptor - 17.4mm | 1 |
| 227029 | Adaptor - 20mm | 1 |
| 227030 | Adaptor - 25.2mm | 1 |
| 227031 | Adaptor - 30mm | 1 |
| 227032 | Adaptor - 36.4mm | 1 |
