MPN:
314275
Barcode:
5012737922369

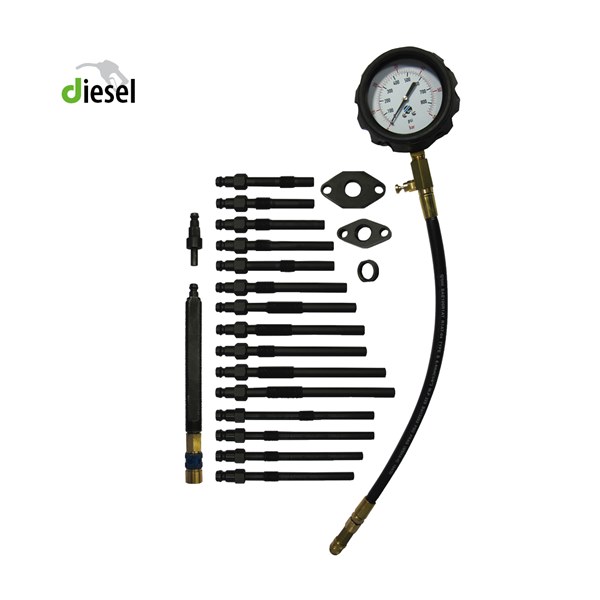

- Comprehensive compression test kit specifically designed to cover a wide range of modern CRD injected engines
- Checks engine compression under cranking conditions
- Enables cylinder access through dummy injector and glow plug adaptors
- Includes large, shock protected gauge featuring dual scale (0-60 bar / 0-860 psi) DIN16005, DIN16063, BS1780 standards
- Pressure relief valve allows repeated cylinder tests without removing the gauge
- Includes CRD dummy injector and clamps for applications where it is easier to remove the injector
- Supplied with vehicle application list in blow moulded case
ATTRIBUTES
| Spares | 314005 - Service Kit for Compression Gauge 014215 - Seal and Washer Kit |
|---|
ITEM CONTENTS
| Code | Name | Qty |
|---|---|---|
| 314201 | Gauge Assembly | 1 |
| 314219 | Dummy Glow Plug Extension Rod - 190mm | 1 |
| 314278 | Injector End | 1 |
| 314287 | Hdi Injector Clamp Piezo | 1 |
| 31428870 | Injector Clamp | 1 |
| 314336 | Lock Nut | 1 |
| 314277 | Dummy Glow Plug M8 x 1.0 - 108mm | 1 |
| 314231 | Dummy Glow Plug M8 x 1.0 - 114mm | 1 |
| 314233 | Dummy Glow Plug M8 x 1.0 - 115mm | 1 |
| 314216 | Dummy Glow Plug M9 x 1.0 - 135mm | 1 |
| 314254 | Dummy Glow Plug M10 x 1.0 - 83mm | 1 |
| 314259 | Dummy Glow Plug M10 x 1.0 - 83mm | 1 |
| 314252 | Dummy Glow Plug M10 x 1.0 - 93mm | 1 |
| 314274 | Dummy Glow Plug M10 x 1.0 - 102mm | 1 |
| 314249 | Dummy Glow Plug M10 x 1.0 - 113mm | 1 |
| 314268 | Dummy Glow Plug M10 x 1.0 - 113mm | 1 |
| 314217 | Dummy Glow Plug M10 x 1.0 - 160mm | 1 |
| 314209 | Dummy Glow Plug M10 x 1.25 - 130mm | 1 |
| 314269 | Dummy Glow Plug M10 x 1.25 - 134mm | 1 |
| 314271 | Dummy Glow Plug M10 x 1.25 - 145mm | 1 |
Specifications
| Brand | SYKES-PICKAVANT |
