- Robust, load-optimized construction with through-pinned and backlash-free precision joint
- Head carefully rounded: no sharp edges that could damage the material
- Electrically discharging handles - dissipative
- High, slim sleeves for fine and comfortable gripping between thumb and index finger
- Uniform bending behavior for a more direct sense of work
- Smoothly ground gripping surfaces for damage-free gripping
- Low-friction double spring for smooth and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Round, pointed jaws, smoothly ground gripping surfaces
- Slender gripping pliers for delicate installation work in precision engineering and electronics
- Ideal for precision engineering and electronics – ESD protection
- For gripping, holding and bending
- Stable thanks to box joint with zero backlash
- Low friction double spring for gentle and steady opening
- Smooth ground, round gripping surfaces
- Pliers mirror-polished with a fine oil film as rust protection
- Handles discharge electrostatic energy in a constant and controlled (dissipative) manner
- ESD protection in accordance with valid standards such as IEC TR 61 340-5, DIN EN 61 340-5, SP Method 2472
- Length 115 mm
- Net weight 70 g
| Technical Description | |
|---|---|
| Article No. | 35 32 115 ESD |
| EAN | 4003773024859 |
| Head | mirror polished |
| Handles | with multi-component handles |
| Weight | 70 g |
| Dimensions | 115 x 71 x 17 mm |
| Standard | DIN ISO 9655 DIN EN 61 340-5 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Jaw length (B) | 22.5 mm |
| Jaw thickness (joint) (D) | 6.5 mm |
| Tips width (E) | 2.0 mm |
| Tips thickness (F) | 1.0 mm |
| Head width (A) | 11.0 mm |
| ESD | yes |

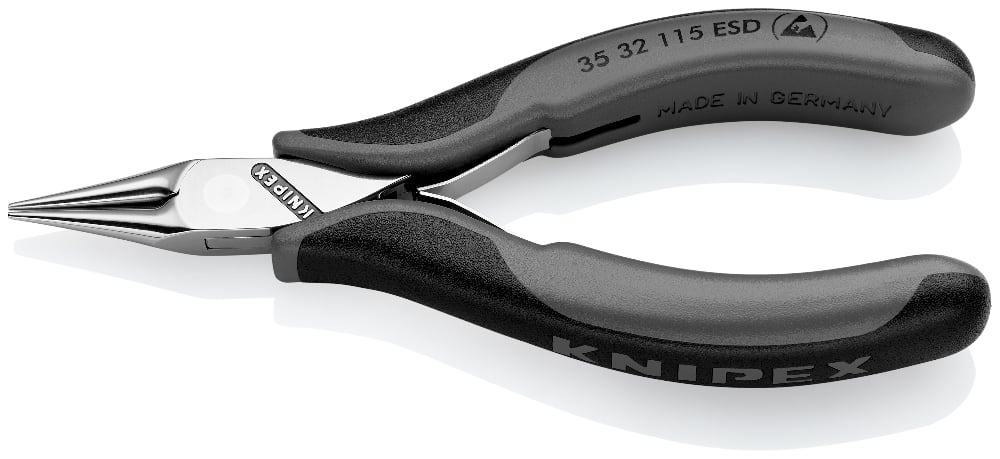

Small, slender and with ESD protection: the gripping pliers for sensitive electronics
Compact and good: 115 mm long for plenty of freedom of movement even where space is restricted.
There is little room when working on electronic equipment, printed circuit boards and precision constructions such as measuring equipment and delicate apparatus: ideal conditions for the Knipex 35 32 115 ESD electronics pliers. These enable you to work well even in poorly accessible areas.
With their slim, flat head and a length of just 115 mm, these electronics pliers from Knipex are the ideal tool for the delicate gripping, holding and bending of sensitive components. The gripping surfaces are smooth ground to protect sensitive surfaces, and are tapered at the front.
Smooth operating and accurate, with box joint design and double spring.
The smaller and more sensitive the component, the more precision pliers must deliver. The accurate, well-measured transmission of manual force to the component is one of the prerequisites when working in electronics and precision engineering. The mechanics of the Knipex 35 32 115 ESD are very finely adjusted. The joint is solid and smooth operating due to the box joint design. The inner handle is guided on both sides by the outer handle. This ensures precise running without any tilting effect. The low friction double spring supports the gentle opening of the pliers.
ESD protection from uncontrolled electrostatic discharge; safety rust protection.
Sudden discharge resulting from electrostatic charging differences is feared in electronics because it can damage components. With the Knipex 35 32 115 ESD electronics pliers, the electrostatic energy is discharged in a constant, controlled manner continuously via the conductive handles. This avoids high potential differences between component and tool. There is no sudden discharge. The rust protection is also safe for sensitive electronic components. There is no chrome-plating, therefore no pieces of chrome can peel off and fall onto printed circuit boards. The mirror polish in conjunction with a fine oil film applied in the factory provides corrosion protection for the pliers during workshop use. The oil film must be replaced occasionally.
