MPN:
3632125
Barcode:
4003773016885

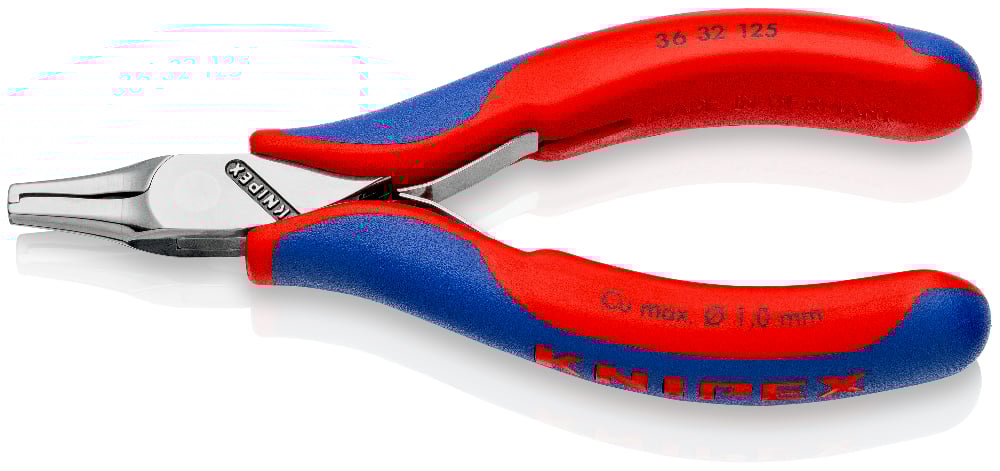

- For bending and cutting off wire ends on components
- Robust, load-optimized construction with through-pinned and backlash-free precision joint
- Side angles carefully rounded: no sharp, material-damaging edges
- High, slim sleeves for fine and comfortable gripping between thumb and index finger
- Uniform bending behavior for a more direct sense of work
- Smooth ground gripping surfaces, edges carefully deburred
- Low-friction double spring for smooth and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- To crunch and cut wire at 1.6 mm length below the board
| Technical Description | |
|---|---|
| Article No. | 36 32 125 |
| EAN | 4003773016885 |
| Head | mirror polished |
| Handles | with multi-component handles |
| Weight | 70 g |
| Dimensions | 125 x 63 x 17 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities soft wire (diameter) | Ø 1.0 mm |
| Jaw thickness (joint) (T1) | 7.0 mm |
| Tips thickness (W4) | 3.0 mm |
| Head width (W3) | 11.0 mm |
| Handle width | 7.5 mm |
| Jaw length (L3) | 18.0 mm |
| Application | cut at 1.6 mm and crunch wire |
Specifications
| Brand | KNIPEX |
