MPN:
6100873AF
Barcode:
4049002016417
- For crimping insulated and non-insulated ferrules according to DIN 46 228
- Self-adjusting adaptation to the required size of ferrule
- Easiest to work with when working conditions are cramped
- Square crimp profile with 4 profiled crimp surfaces
- Precise, factory-set (calibrated) crimping pressure, can be re-adjusted
- Force magnified by lever action to ensure fatigue-free working
- Consistent crimping quality with forced-lock completion of crimping process (can be released)
- Specially hardened spring steel
- Front insertion up to max. 10.0 mm² possible
- Sideways insertion up to max. 2.5 mm² possible

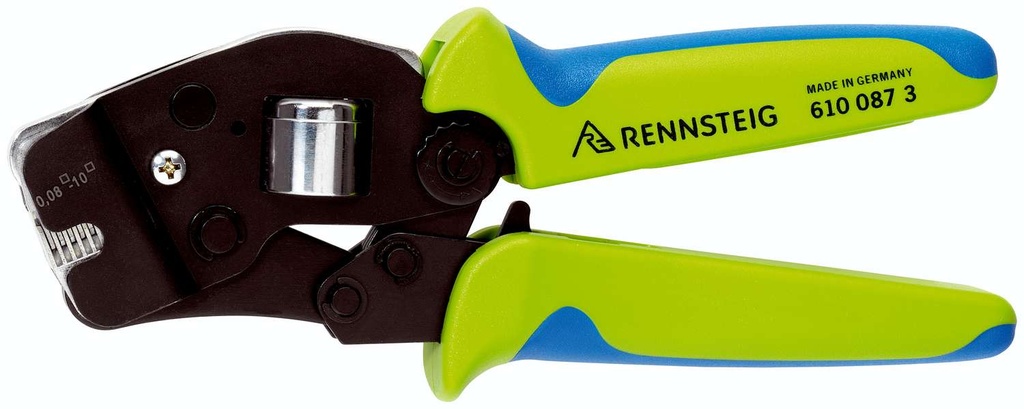

Ferrule crimping tool PEW 8.87
Front and sideways insertion
610 087 3
Product Details
| Part No. | 610 087 3 |
|---|---|
| EAN | 4049002016417 |
| Weight | 520 g |
| Dimension | 190 mm |
| Finish | black-oxide finish |
| Number of crimping positions | 1 |
| Ferrules | 0.08 – 10.0 mm² / AWG 28 – 8 |
| Twin ferrules | 2x 0.25 – 4.0 mm² / 2x AWG 22 – 10 |
| Crimp surfaces | 4 profiled crimp surfaces |
| Contact insertion | Front and sideways insertion |
Specifications
| Brand | RENNSTEIG |
