MPN:
6360843AF
Barcode:
4049002097348
- Compact, maintenance-free table-top device
- Crimp force 25 kN, working pressure 6 bar
- Air requirements 0.75 l/work stroke
- Hand or foot operation
- Height-adjustable feet
- Crimp unit for insulated and uninsulated 0.08 mm² to 10 mm² ferrules
- Automatic adjustment to cross-section when crimping insulated and non-insulated ferrules according to DIN 46 228
- Square crimp profile with 4 profiled crimp surfaces
- Adjustable insertion guide for insulated ferrules
- Quick and simple retooling makes it suitable for short- and medium-run production

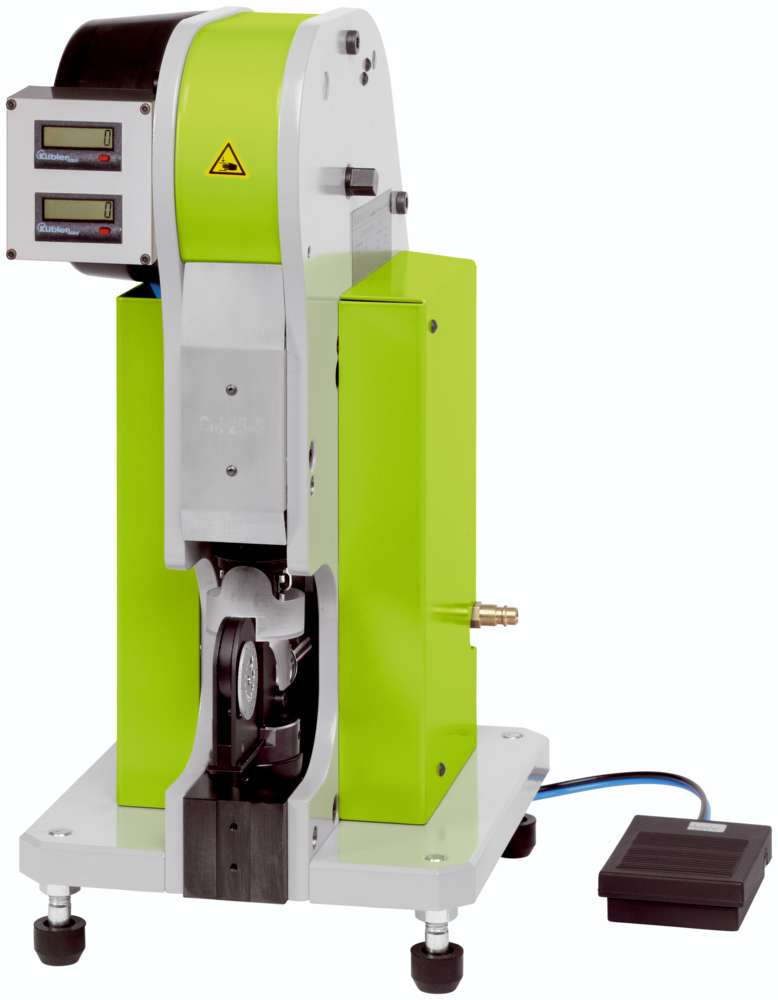

Crimping machine CM 25-3
with ferrule crimping unit
636 084 3
| Part No. | 636 084 3 |
|---|---|
| EAN | 4049002097348 |
| Weight | 32,400 g |
| Dimension | 325 x 280 x 500 mm |
| Number of crimping positions | 1 |
| Ferrules | 0.08 – 10.0 mm² / AWG 28 – 8 |
| Twin ferrules | 2x 0.25 – 6.0 mm² / 2x AWG 22 – 10 |
Specifications
| Brand | RENNSTEIG |
