MPN:
675300006AF
Barcode:
4049002097164
- Powered hydraulic hand tool for crimping turned pin and socket contacts
- 20 kN pressure
- Crimp cycle 2.8 seconds
- Approx. 300 crimps achievable on one battery charge (with average load)
- Charging time <30 min for lithium-ion battery
- 4/8 indent crimping units usable, rotates by 360°
- Indent positioning precision to 1/100 mm
- Integrated wear monitoring
- Recalibration function

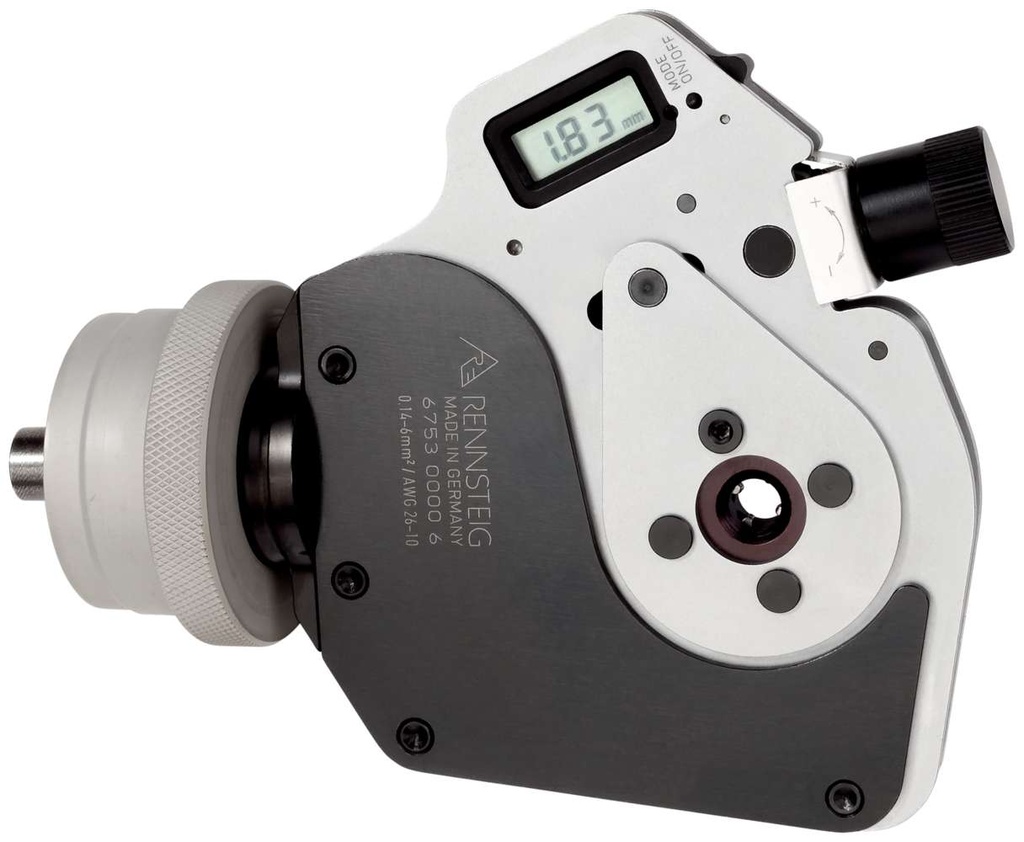

Crimping unit with standard indents
6753 0000 6
| Part No. | 6753 0000 6 |
|---|---|
| EAN | 4049002097164 |
| Weight | 1,060 g |
| Dimension | 160 x 130 x 60 mm |
| Capacity | 0.14 – 6.0 mm² / AWG 26 – 10 |
| Max. contact Ø | 7.5 mm |
Specifications
| Brand | RENNSTEIG |
