- Narrow head style for use in confined areas
- The indispensable diagonal cutter for all-round use
- High-quality material and precise workmanship for long service life
- Precision cutting edges for soft and hard wire
- Clean cutting of thin copper wires, also at the cutting edge tips
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC
- With elongated cutting edge
- Versatile, compact diagonal cutters (160 mm long)
- Cut hard wire (e.g. wire rope fibre) up to Ø 2.0 mm and soft wire (e.g. copper wire) up to Ø 4.0 mm
- Precise cutting also of fine CU wire, even with the tips of the cutting edges
- Are also suitable when working in confined spaces thanks to their slim head shape
- Production according to higher standards for optimal work results and a long service life
- Cutting edges induction hardened to approx. 62 HRC for strength and a long service life
- Dip-insulated in accordance with IEC 60900 / DIN EN 60900
- Vanadium electric steel, forged, oil hardened, chrome-plated
| Technical Description | |
|---|---|
| Article No. | 70 07 160 |
| EAN | 4003773018155 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | with dipped insulation, VDE-tested |
| Weight | 227 g |
| Dimensions | 160 x 60 x 28 mm |
| Standard | DIN ISO 5749 DIN EN 60900 IEC 60900 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacities medium hard wire (diameter) | Ø 3.0 mm |
| Cutting capacities hard wire (diameter) | Ø 2.0 mm |
| VDE tested | yes |

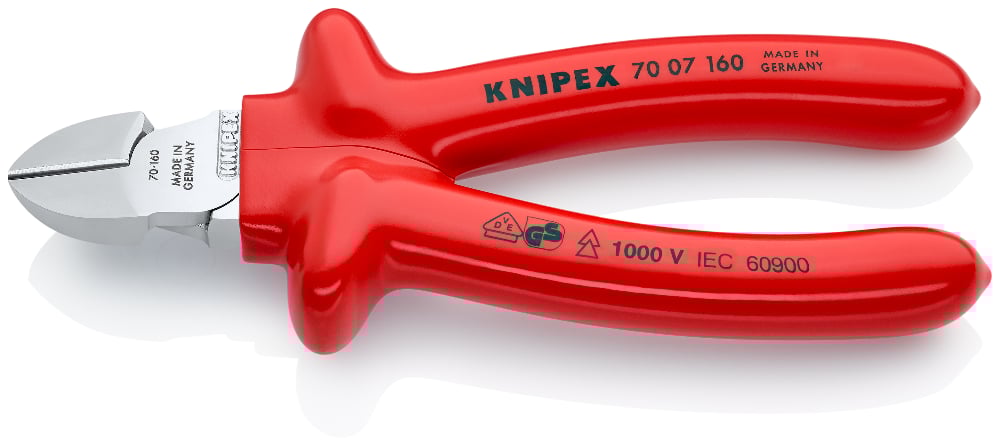

The versatile, chrome-plated diagonal cutters, 160 mm long
Optimised for the craftsman’s everyday work and dip-insulated up to 1000 V.
Long appreciated by many craftsmen – the Knipex diagonal cutters with a length of 160 mm are a classic in the Knipex range.
From the shape of the head through to the polish and hardness of the cutting edges, it is customised for the diverse cutting tasks in the day-to-day work of electricians and mechatronics engineers.
The Knipex 70 07 160 is dip-insulated in accordance with the insulation standard IEC 60900 / DIN EN 60900.
Universal cutting capacity
With their cutting capacities of up to Ø 2.0 mm on hard wire (e.g. wire rope fibre) and up to Ø 4.0 mm on soft wire (e.g. copper wire), the Knipex 70 07 160 diagonal cutters offer a broad range of applications.
The long cutting edges make them ideal for cutting cable. The extremely carefully and precisely machined cutting edges enable even very fine stranded wire to be cut accurately – up to the tips of the cutting edges. This is a great advantage where space is restricted, for example when shortening fine stranded wires in junction boxes or when cutting copper cable in distribution boxes.
Tough and durable
We forge the Knipex diagonal cutters from vanadium electric steel and make them strong by warming them and then quenching them in oil. To achieve a permanently accurate cut we additionally use high-frequency current to give the cutters a hardness of approx. 62 HRC. Chrome plating is effective rust protection that pays off during outdoor use, for example. Thanks to the chrome plating, the diagonal cutters are particularly easy to clean.
