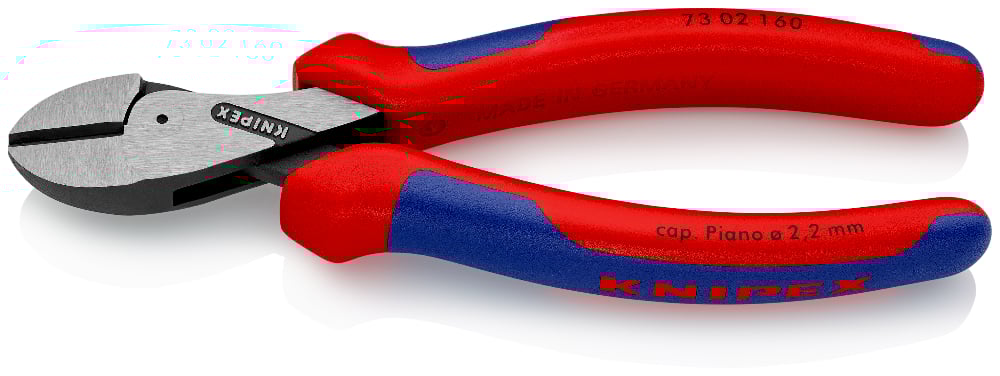

- Cuts finest strands as well as multi-core cables and piano wires
- Powerful, light and universal
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- Box-joint design: highest stability with low weight
- Doubly supported joint axis for heavy duty
- Large opening width for thicker cables
- Cuts precisely, even through fine copper wires
- Compact, low-weight construction
- Universally usable, in the assembly, maintenance and production
- 40% less force required compared with standard diagonal cutters of the same length
| Technical Description | |
|---|---|
| Article No. | 73 02 160 SB |
| EAN | 4003773075349 |
| Pliers | black atramentized |
| Head | polished |
| Handles | with multi-component handles |
| Weight | 195 g |
| Dimensions | 160 x 85 x 20 mm |
| Standard | DIN ISO 5749 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Technical Description | |
|---|---|
 Cutting capacities soft wire (diameter) |
Ø 4 mm |
 Cutting capacities medium hard wire (diameter) |
Ø 3.8 mm |
 Cutting capacities hard wire (diameter) |
Ø 2.7 mm |
 Cutting capacities piano wire (diameter) |
Ø 2.2 mm |
 Cutting capacity copper cable, multiple-stranded |
Ø 12.0 mm |
