- For very tough, continuous use
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- Precision cutting edges also induction-hardened (hardness approx. 64 HRC), for all wire types including piano wire
- Large high leverage diagonal cutters (250 mm long) with forged joint axle
- Cut piano wire (spring steel wire) up to Ø 3.0 mm
- In relation to the cutting capacity, comparatively low weight at 440 g
- Cutting edge hardness approx. 64 HRC
- Production according to higher standards for optimal work results and a long service life
- Sit firmly in the hand thanks to ergonomic handle design and multi-component grips
- Chrome vanadium electric steel, forged, oil hardened in multiple stages and chrome-plated
| Technical Description | |
|---|---|
| Article No. | 74 05 250 |
| EAN | 4003773039754 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | with multi-component handles |
| Weight | 440 g |
| Dimensions | 250 x 54 x 24 mm |
| Standard | DIN ISO 5749 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting Capacity | Diameter |
|---|---|
| Medium hard wire | Ø 4.6 mm |
| Hard wire | Ø 3.5 mm |
| Piano wire | Ø 3.0 mm |

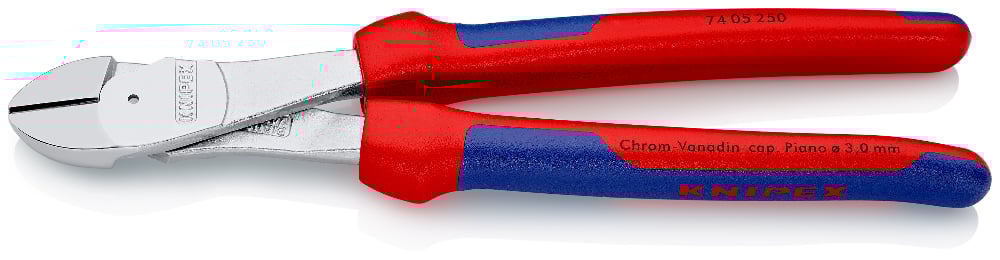

Large high leverage diagonal cutters for hard constant use
Reliable tool for professional users: tough and strong
Thanks to their high cutting capacity and indestructible strength, the Knipex 74 05 250 high leverage diagonal cutters are highly valued especially by craftsmen and industrial mechanics.
The version with a length of 250 mm is frequently used on building sites and in manufacturing because it can cut hard materials such as piano wire up to 3.0 Ø mm effortlessly.
The chrome plating contributes to the durability of these high leverage diagonal cutters, because it acts as an effective rust protection – for example when they are used outside – and makes them easier to clean.
Comparatively low weight, optimum geometry and a 20 % energy saving
Compared to conventional diagonal cutters of the same size, the Knipex 74 05 250 offers a much better ratio between the force required and cutting capacity. The geometry of the cutting edges, joint and the handles has been designed for efficiency.
This tool is also the first choice for hard constant use, e.g. in industry, because its ergonomic design makes work much easier for the user. Thanks to the hand-friendly shape of the handle, the benefits of using these high leverage diagonal cutters are plain to feel and see. The dip-insulated sleeves ensure added comfort.
The multi-component grips ensure added comfort. The Knipex 74 05 250 is extremely stable due to its robust design with forged joint axle, while its weight of 440 g is low in relation to the high cutting capacity.
Brief overview
Precise cutting of medium-hard and hard wire as well as piano wire
One can see how good diagonal cutters are by the cut. Knipex high leverage diagonal cutters deliver better performance. In addition to the quality forged metal parts made of high performance chrome vanadium tool steel, the most important quality criteria at Knipex include their precise machining. The sharpness and angle of the cutting edges on the Knipex 74 05 250 are designed for top performance. The excellent machining of these high leverage diagonal cutters makes sure that the material to be cut is always cut cleanly. The high quality of the tool steel produced in Germany, the hardness of the cutting edges and the forged joint axle guarantee exceptional stability and a long service life.
With forged joint axle for the toughest, continuous demands.
Compared to conventional diagonal cutters, the Knipex 74 05 250 offers a significantly better ratio between the force required and cutting capacity.
The precision cutting edges are additionally induction hardened.
The 250 mm long diagonal cutters can be used for Cu conductors up to 16 mm² and Al conductors up to 35 mm².
