MPN:
7772115ESD
Barcode:
4003773024330
- Durable, load-optimised design with backlash-free box joint
- High, slim sleeves for fine and comfortable gripping between thumb and index finger
- Less physical effort due to very high transmission ratio
- Load-optimised for a more direct feel when working
- Low-friction double spring for smooth and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 62 HRC
- Pointed mini-head, with small bevel
| Technical Description | |
|---|---|

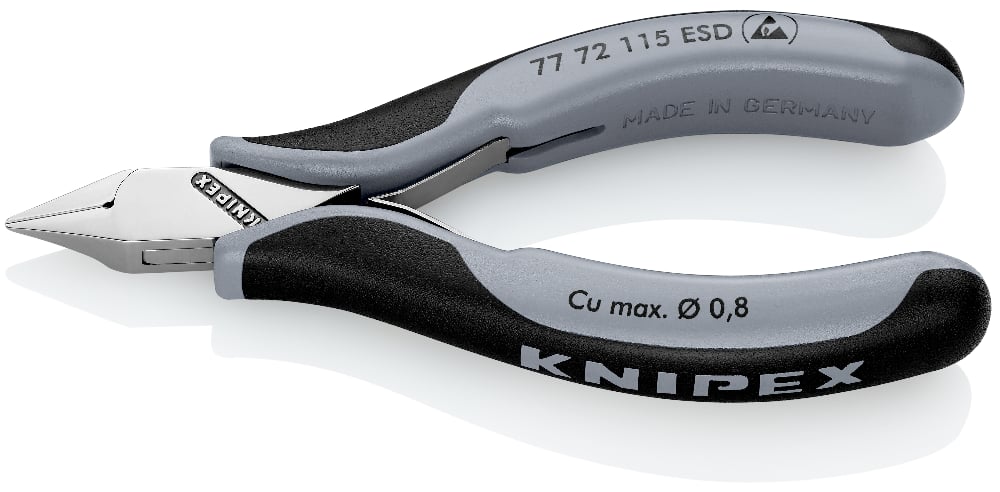

| Article No. | 77 72 115 ESD |
| EAN | 4003773024330 |
| Head | mirror polished |
| Handles | with multi-component handles |
| Weight | 65 g |
| Dimensions | 115 x 66 x 17 mm |
| Standard | DIN ISO 9654 DIN EN 61 340-5 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Jaw length (B) | 10.5 mm |
| Jaw thickness (joint) (D) | 6 mm |
| Head width (A) | 11 mm |
| ESD | yes |
Specifications
| Brand | KNIPEX |
