MPN:
7806125
Barcode:
4003773084099

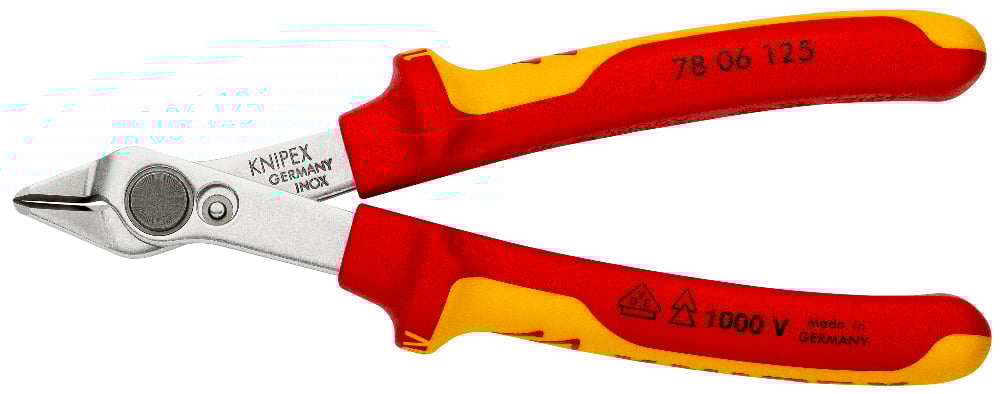

- VDE-tested precision pliers for ultra fine cutting work, e.g. in electronics and fine mechanics
- Complete your set of VDE-tools
- Ground, very sharp cutting edges without bevel
- Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
- Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
- Joint with stainless steel rivet
- Extremely smooth movement for minimum operator fatigue
- With opening spring and opening limiter
- Cutting edge hardness approx. 54 HRC
| Technical Description | |
|---|---|
| Article No. | 78 06 125 |
| EAN | 4003773084099 |
| Head | polished |
| Handles | insulated with multi-component grips, VDE-tested |
| Weight | 60 g |
| Dimensions | 125 x 78 x 18 mm |
| Standard | DIN ISO 9654 DIN EN 60900 IEC 60900 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Technical Description | |
|---|---|
 Cutting capacities medium hard wire (diameter) |
Ø 1.0 mm |
 Cutting capacities soft wire (diameter) |
Ø 01 mm |
| Jaw length (B) | 9 mm |
| Jaw thickness (joint) (D) | 7.5 mm |
| Head width (A) | 13.5 mm |
| VDE tested | yes |
Specifications
| Brand | KNIPEX |
