- Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
- Ground, very sharp cutting edges without bevel
- Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
- Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
- Joint with stainless steel rivet
- Extremely smooth movement for minimum operator fatigue
- With opening spring and opening limiter
- With narrow head
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 60 HRC
- Special tool steel, burnished
- Precision pliers for the finest cutting work in electronics and precision engineering: shear cut with controlled micro cutting edge misalignment
- Thanks to precisely shaped tips, also cut abutting wires accurately as from Ø 0.2 mm
- Cutting capacity of soft wire up to 1.0 Ø mm
- Multi-component grips
- Very smooth operating thanks to frictionless handle spring
- Low weight (55 g)
- Manufacture in accordance with high standards for optimum work results and a long tool life
- Manufactured from special tool steel, polished
- Cutting edge hardness approx. 60 HRC
| Technical Description | |
|---|---|
| Article No. | 78 31 125 |
| EAN | 4003773039778 |
| Pliers | Burnished |
| Head | Burnished |
| Handles | With multi-component handles |
| Weight | 55 g |
| Dimensions | 125 x 60 x 13 mm |
| Standard | DIN ISO 9654 |
| REACH compliant | Does not contain SVHC |
| RoHS compliant | Not applicable |
| Cutting capacities soft wire (diameter) | Ø 01 mm |
| Jaw length (B) | 9 mm |
| Jaw thickness (joint) (D) | 7.5 mm |
| Head width (A) | 12.5 mm |
Also cut abutting, fine wires accurately
Extremely sharp cutting edges made of induction hardened special tool steel

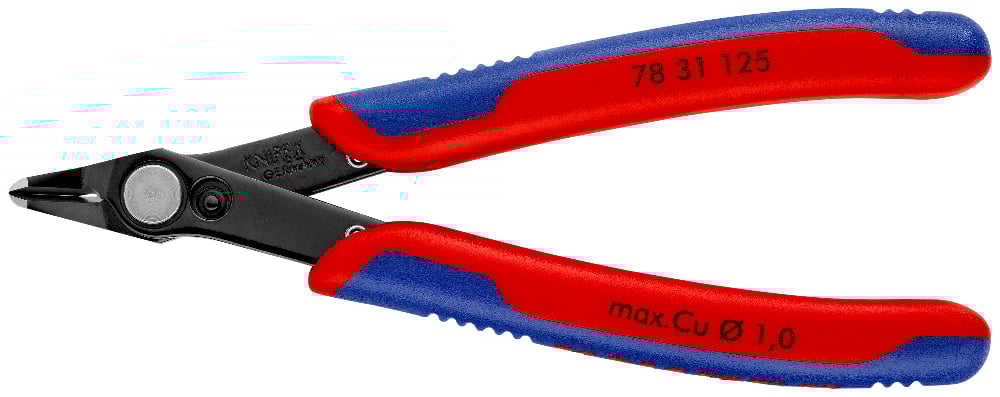

The Knipex Electronic Super Knips is manufactured from special tool steel and polished. The cutting edges are ground without bevel for flush cutting and are induction hardened to approx. 60 HRC. Thanks to the precision tips, it is also possible to cut fine wire accurately, e.g. wire touching enclosures and components.
Work involving dexterity: low weight and smooth operation
Great dexterity is needed when working on electronic components and in precision mechanics.
Due to the handle springs without friction, operation of the Knipex 78 31 125 Electronic Super Knips is so smooth that force can be very finely and sensitively metered. The opening restrictor simplifies work further.
The head of the pliers on the model 78 31 125 has a very slim design: for optimum work, also in confined spaces, e.g. on densely packed printed circuit boards.
A special detail ensures an accurate cut and long service life
These precision pliers have been designed so that the user is able to concentrate completely on his work, also when working continuously, without the need to consider the tool.
One special detail permits the most precise shear cuts on even the thinnest of wire, and at the same time gives the pliers a long service life: the extremely sharp cutting edges on the Electronic Super Knips 78 31 125 are protected against bumping into each other after cutting by the micro cutting edge misalignment.
It will therefore be clear to all professional users that these pliers with their multi-component grips will sit comfortably in the hand for many years.
Knipex 78 31 125 Electronic Super Knips: high level of safety and quality
The Knipex Electronic Super Knips is used for the finest cutting work in electronics and precision mechanics. Radio technicians, industrial electricians, mechatronics engineers and electronics engineers, for example, place great value on optimal working results even in confined spaces thanks to the slim head of the pliers. The following arguments speak in favour of these precision pliers: their free movement, low weight, the excellent cutting precision and long tool life, among other things thanks to the micro cutting edge misalignment. These benefits are the visible results of decades of experience in toolmaking, constant product development and the commitment by Knipex towards the highest quality standards: from material selection and processing through to finishing.
