- Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
- Ground, very sharp cutting edges without bevel
- Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
- Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
- Joint with stainless steel rivet
- Extremely smooth movement for minimum operator fatigue
- With opening spring and opening limiter
- With lead catcher - no uncontrolled loss of cut wire ends
- With narrow head
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 60 HRC
- Special tool steel, burnished
- Precision pliers for the finest cutting work in electronics and precision engineering: shear cut with controlled micro cutting edge misalignment.
- Thanks to precisely shaped tips, also cut abutting wires accurately as from Ø 0.2 mm.
- Cutting capacity of soft wire up to 1.0 Ø mm.
- Multi-component grips.
- Very smooth operating thanks to frictionless handle spring.
- Low weight (57 g).
- Production in accordance with the highest standards for optimal work results and a long service life.
- Manufactured from polished special tool steel.
- Wire clamp holds wire sections on the pliers, preventing them from springing back.
- Cutting edge hardness approx. 60 HRC.
| Technical Description | |
|---|---|
| Article No. | 78 41 125 |
| EAN | 4003773040767 |
| Pliers | Burnished |
| Head | Burnished |
| Handles | With multi-component handles |
| Weight | 57 g |
| Dimensions | 125 x 65 x 12 mm |
| Standard | DIN ISO 9654 |
| REACH compliant | Does not contain SVHC |
| RoHS compliant | Not applicable |
| Cutting capacities soft wire (diameter) | Ø 01 mm |
| Jaw length (B) | 9 mm |
| Jaw thickness (joint) (D) | 7.5 mm |
| Head width (A) | 12.5 mm |
Also cut abutting, fine wire accurately – hold wire sections securely
Extremely sharp cutting edges made of induction hardened special tool steel.

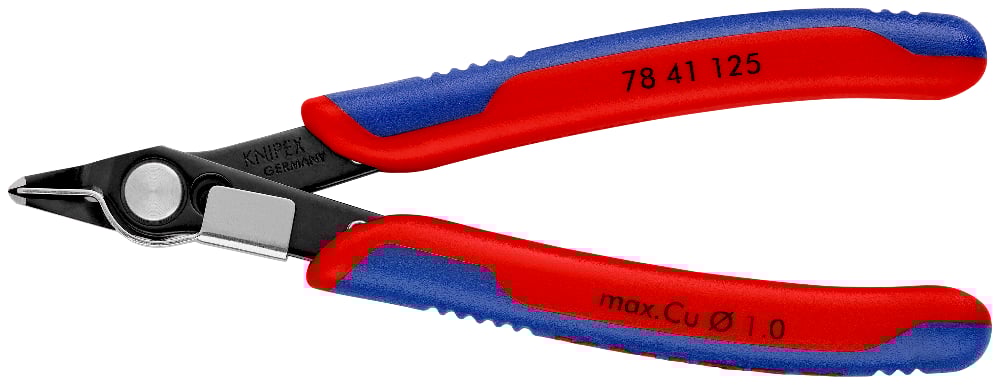

The Knipex Electronic Super Knips is manufactured from special tool steel and polished. The cutting edges are ground without bevel for flush cutting and are induction hardened to approx. 60 HRC.
Accurately cut fine wires, e.g. that are touching enclosures and components, thanks to precision tips.
Great dexterity is needed when working on electronic components and in precision mechanics. Due to its frictionless handle spring, the Knipex Electronic Super Knips 78 41 125 is so smooth-running that energy can be metered out very precisely – with dexterity.
The head of the pliers on the model 78 41 125 has a very slim design: for optimum work, also in confined spaces, e.g. on densely packed printed circuit boards.
These precision pliers have been designed so that the user is able to concentrate completely on his work, also when working continuously, without the need to consider the tool.
