- Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
- Electrically discharging handles - dissipative
- Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting
- Precision cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
- Approx. 20% lighter than conventional electronics pliers
- Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
- Smooth-running double spring for a gentle and even opening
- Ergonomically optimised multi-component handles
- Specially for cutting through hard wire and piano wire
- Precision electronics diagonal cutters with ESD protection for fine cutting
- Precisely ground, sharp cutting-edges with small bevel for precise cut
- Cutting values: medium-hard Ø1.3 hard Ø1.0 piano Ø0.6 soft Ø0.3-1.7 mm
- Bolted precision joint.
- Forged from ball-bearing steel
- Cut edges induction-hardened, hardness approx. 64 HRC
- Handles w/ ESD multi-component grips, electrostatic dissipation
- Length 125mm; Net weight 60 g
| Technical Description | |
|---|---|
| Article No. | 79 12 125 ESD |
| EAN | 4003773071389 |
| Pliers | Burnished |
| Head | Polished |
| Handles | With multi-component handles |
| Weight | 61 g |
| Dimensions | 125 x 60 x 20 mm |
| Standard | DIN ISO 9654 DIN EN 61 340-5 |
| REACH compliant | Does not contain SVHC |
| RoHS compliant | Not applicable |
| Technical Description | |
|---|---|
 Cutting capacities medium hard wire (diameter) |
Ø 1.3 mm |
 Cutting capacities hard wire (diameter) |
Ø 1.0 mm |
 Cutting capacities piano wire (diameter) |
Ø 0.6 mm |
 Cutting capacities soft wire (diameter) |
Ø 01 mm |
| Jaw length (B) | 10 mm |
| Jaw thickness (joint) (D) | 6.5 mm |
| Head width (A) | 11 mm |
| ESD | Yes |
Precise cutting of finest wires – even soft wires up to Ø1.7 mm
Compact dimensions – long-lasting large cutting capacity

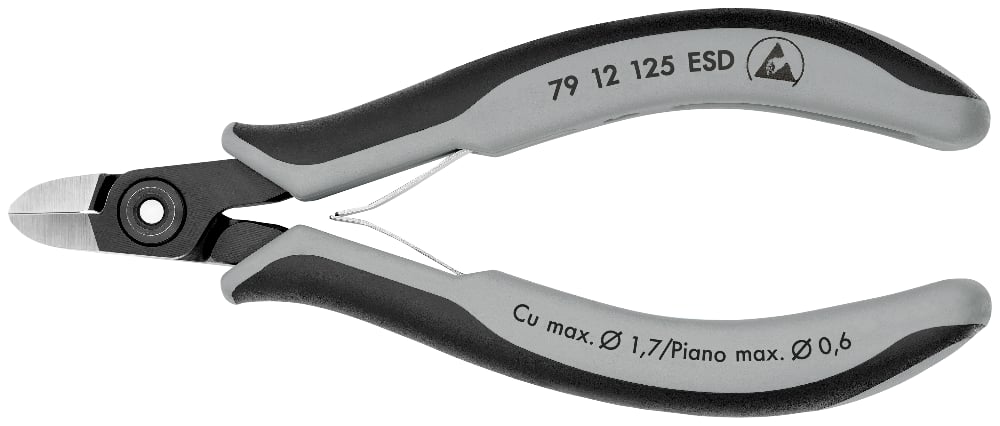

The precision electronics diagonal cutters from Knipex stand out from other electronics diagonal cutters because of their outstanding quality. They are precision tools for cutting even the finest wires with surgical precision. Being 120 mm long and weighing only 60 g, the Knipex 79 12 125 ESD is particularly compact and around 20% lighter than other electronics diagonal cutters: ideal for being carried around and for delicate work, e.g. solder contacts of electronic components. The edge hardness of approx. 64 HRC lets the Knipex 79 12 125 ESD cut soft wire up to Ø1.7 mm and even piano wire up to Ø0.6 mm. Impressive figures for such compact pliers. The ratio of handle length to pliers head size yields strong leverage. The very small bevel ensures a long service life for the cutting edges and the pliers.
Bolted joint. High cut quality and durability
The Knipex 79 12 125 ESD precision electronics diagonal cutter was developed especially for the separation of hard wire and piano wire. The joint surfaces are carefully machined for easy operation. This leads to gentle, even opening after the cutting process. Knipex 79 12 125 ESD is also suitable for use in tough industrial settings.
High Knipex quality standards, ESD protection
Precise guidance of the lever, low-friction and extremely sharp cutting edges ensure optimum results in precision electronics diagonal cutter 79 12 125 ESD from Knipex. Forged from ball bearing steel, black finish, finely ground cutting surfaces. Electrostatic energy is discharged evenly via the handles. ESD protection as per current standards.
Precision electronics diagonal cutters – electronics, precision mechan.
Knipex offers a comprehensive range of precision electronics diagonal cutters for applications in electronics and precision equipment. They are characterised by extreme precision, smooth operation and functionality – plus the proverbial Knipex durability.
Professionals who use tools a lot every day expect a quality that enables them to work easily and safely and that can withstand many years of tough service. Precision electronics diagonal cutters from Knipex are forged from ball-bearing steel and crafted with the customary care by Knipex.
