- Swedish pattern
- 45° angled jaws
- Jaws with double offset teeth
- Teeth additionally induction-hardened
- I-beam handle design
- Captive adjusting nut
- Red powder-coated, jaws bright ground
- Gripping jaws with specially hardened teeth, hardness approx. 56 HRC
- Robust 2 inch pipe pliers, double-T profile handle, installations
- Slim, 45° angled jaws
- For pipes with max. 70 mm external diameter and nuts up to opening width 70
- Chrome vanadium electric steel forged multistage oil-hardened
- Also induction-hardened, serrated in the opposite direction to rotation
- Even with wide pliers opening, large parallel contact areas on workpiece
- Captive adjusting nut; red powder-coated pliers, unpainted ground jaws
- Length 570mm; Net weight 2,596 g
| Technical Description | |
|---|---|
| Article No. | 83 20 020 |
| EAN | 4003773014232 |
| Pliers | Red powder-coated |
| Weight | 2,596 g |
| Dimensions | 570 x 72 x 28 mm |
| Standard | DIN 5234 |
| REACH compliant | Does not contain SVHC |
| RoHS compliant | Not applicable |
| Clamping width | 70 mm |
| Capacities for pipes (diameter) | Ø 2 3/4 Inch |
| Capacities for pipes (diameter) | Ø 70 mm |
| Capacities for nuts | 70 mm |
| Inner diameter, inches | Ø 2 Inch |
Product Description
Power tool with marathon qualities for industry
Infinite adjustment, effortless self-locking action

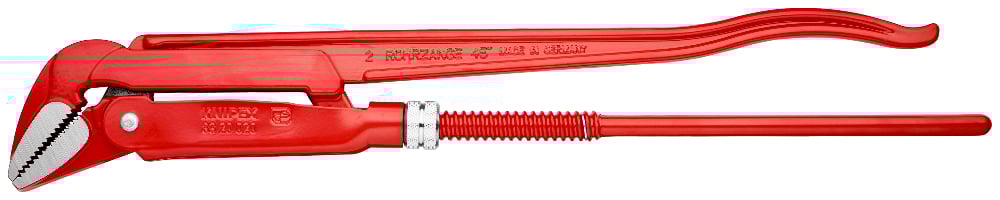

Knipex pipe wrench 83 20 020 is adjusted directly on the workpiece with a literal flick of the wrist: twist the knurled screw to open the jaws, place the outer handle over the workpiece, press down the inner handle, turn the knurled screw – done. This infinite adjustment enables the tool to be adjusted quickly to the user's hand, whatever the workpiece dimensions in the capacity range. Just a little pressure locks the wrench handle onto the workpiece in the direction of rotation. This very useful self-locking action greatly facilitates the application of high torques with Knipex pipe wrenches, as all the force can flow in the direction of rotation. When the direction of rotation changes, the wrench is reversed to maintain the self-locking action.
High-efficiency, torsion-resistant pipe pliers
With a total length of 570 mm, the Knipex 83 20 020 pipe pliers apply high gripping force via the pliers head to the workpiece, e.g. a threaded fitting. The leverage is already noticeable in one-handed operations. The 45° angle of the pliers jaw offers stable, parallel support for flat parts, fittings and nuts even when the pliers are opened wide.
For flat parts, nuts and threaded fittings. Long-lasting Knipex quality
Knipex 83 20 020 pipe pliers are known for their lasting qualities. They were designed according to all the rules of physics & ergonomic efficiency. They are forged from high-grade chrome vanadium steel, multistage oil-hardened and powder-coated. The teeth have additional inductive hardening. These durable pipe pliers are suitable for long-term use.
