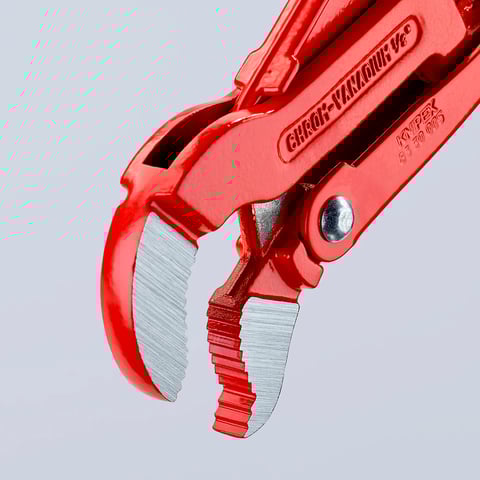

- Slim, S-type jaw
- Jaws with double offset teeth
- Teeth additionally induction-hardened
- Three-point contact on pipes, self-locking
- I-beam handle design
- Captive adjusting nut
- Red powder-coated, jaws bright ground
- Gripping jaws with specially hardened teeth, hardness approx. 56 HRC
- Robust corner pipe pliers, double-T profile handle, installation
- Slim, S-shaped jaws
- For pipes with max. 35 mm ext. diameter
- Chrome vanadium elec. steel, forged, oil-hardened
- Also induction-hardened, serrated in the opposite direction to rotation
- 3-point contact with pipe, self-locking
- Captive adjusting nut; red powder-coated pliers, unpainted ground jaws
- Length 245mm, Net weight 472 g
| Technical Description | |
|---|---|
| Article No. | 83 30 005 |
| EAN | 4003773025221 |
| Pliers | Red powder-coated |
| Weight | 472 g |
| Dimensions | 245 x 41 x 18 mm |
| Standard | DIN 5234 |
| REACH compliant | Does not contain SVHC |
| RoHS compliant | Not applicable |
| Clamping width | 35 mm |
| Capacities for pipes (diameter) | Ø 1 1/2 Inch |
| Capacities for pipes (diameter) | Ø 35 mm |
| Capacities for nuts | 35 mm |
| Inner diameter, inches | Ø 0 1/2 Inch |
Product Description
Power tool with marathon qualities for installations. Infinite adjustment, effortless self-locking action. Knipex corner pipe wrench 83 30 005 is adjusted on the workpiece: twist the knurled screw to open the jaws, place the outer handle over the workpiece, press down the inner handle, turn the knurled screw – done. This corner pipe wrench is infinitely adjustable, allowing the tool to be adjusted to the user's hand size whatever the workpiece dimensions in the capacity range. It takes just a gentle pressure on the handle for the wrench to lock onto the workpiece in the direction of rotation. This very useful self-locking action greatly facilitates the application of high torques with the Knipex corner pipe wrench. When the direction of rotation changes, the wrench is reversed to maintain the self-locking action.
