- Slim, S-type jaw
- Jaws with double offset teeth
- Teeth additionally induction-hardened
- Three-point contact on pipes, self-locking
- I-beam handle design
- Captive adjusting nut
- Red powder-coated, jaws bright ground
- Gripping jaws with specially hardened teeth, hardness approx. 56 HRC
- Robust corner pipe pliers, double-T profile handle, installation
- Slim, S-shaped jaws
- For pipes with max. 60 mm ext. diameter
- Chrome vanadium elec. steel, forged, oil-hardened
- Also induction-hardened, serrated in the opposite direction to rotation
- 3-point contact with pipe, self-locking
- Captive adjusting nut; red powder-coated pliers, unpainted ground jaws
- Length 420mm; Net weight 1540 g
| Technical Description | |
|---|---|
| Article No. | 83 30 015 |
| EAN | 4003773014256 |
| Pliers | Red powder-coated |
| Weight | 1,540 g |
| Dimensions | 420 x 78 x 23 mm |
| Standard | DIN 5234 |
| REACH compliant | Does not contain SVHC |
| RoHS compliant | Not applicable |
| Clamping width | 60 mm |
| Capacities for pipes (diameter) | Ø 2 3/8 Inch |
| Capacities for pipes (diameter) | Ø 60 mm |
| Capacities for nuts | 60 mm |
| Inner diameter, inches | Ø 1 1/2 Inch |
Power tool with marathon qualities for const./canal const.
Infinite adjustment, effortless self-locking action

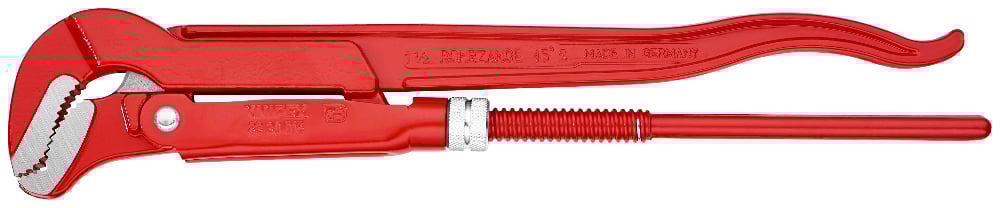

Knipex corner pipe wrench 83 30 015 is adjusted on the workpiece: twist the knurled screw to open the jaws, place the outer handle over the workpiece, press down the inner handle, turn the knurled screw – done. The infinite adjustment of the corner pipe wrench allows the tool to be adjusted to the user's hand size whatever the workpiece dimensions in the capacity range. It takes just a gentle pressure on the handle for the wrench to lock onto the workpiece in the direction of rotation. This very useful self-locking action greatly facilitates the application of high torques with the Knipex corner pipe wrench. If the direction of rotation changes, the wrench is reversed to maintain the self-locking action.
High-efficiency, torsion-resistant corner pipe pliers for tough conditions
With the overall length of 420 mm, the Knipex 83 30 015 corner pipe pliers apply enormous gripping force via the pliers head – whether using one hand or two. The S-shape of the jaw of the Knipex 83 30 015 establishes a stable three-point grip on the pipe. The double T-profiled handle gives the pliers very high stability and allows for a firm grip.
Suitable for pipes and threaded fittings. Long-lasting Knipex quality
The Knipex 83 30 015 corner pipe pliers have lasting qualities. The pliers were designed according to all the rules of physics & ergonomic efficiency. They are forged from high-grade chrome vanadium steel, oil-hardened & powder-coated. Teeth with additional inductive hardening. This makes the corner pipe pliers suitable for long-term heavy duty use.
