- When working on SMD components (SMD = surface mounted device): the fine geometry of the SMD tweezers also allows work to be carried out on electronic components that can be soldered directly onto the circuit board using solderable connecting surfaces
- Handcrafted: polished edges and an excellent matt, scratch-free and non-reflective surface
- For assembly work, laboratory processes, clean room environments, circuit board repairs and reworking in the electronics industry
- High-quality premium stainless steel: high temperature resistance and excellent corrosion resistance to most chemicals, salts and acids
- Antimagnetic to avoid electromagnetic damage
- The variety of designs and jaw types enables small components to be held, positioned and controlled securely in confined spaces
- This allows to compensate in a controlled manner the differences in potential between the operator and electronic components
- With a tested black epoxy resin coating with a surface resistance between 10^3 and 10^9 ohms
| Technical Description | |
|---|---|

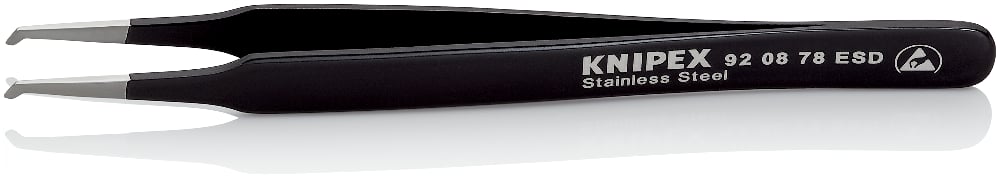

| Article No. | 92 08 78 ESD |
| EAN | 4003773054634 |
| Material | stainless steel |
| Gripping surfaces | smooth gripping surfaces |
| Handles | Smooth |
| Weight | 15 g |
| Dimensions | 118 x 10 x 12 mm |
| Standard | DIN EN 61340 -5-1 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Surface | matt finish |
| Finish | angled 45° |
| Tips width (A) | 0.5 mm |
| Tips width (B) | 2.5 mm |
| Tweezers tip version | positioning |
| Corrosion-resistant | yes |
| Acid resistance | very good |
| ESD-tested | yes |
| VDE tested | no |
| Sectors | electronics |
| Magnetic | non-magnetisable (80%) |
| Behaviour | electrically dissipative |
