- ESD tweezers are made of 30% carbon fibre reinforced plastic, are electrically and thermally highly conductive and are characterised by high resistance to abrasion and scratching.
- With a surface resistance between 10^2 and 10^4 ohms to compensate in a controlled manner the differences in potential between the operator and the electronic components.
- ESD plastic tweezers are temperature-stable up to 130° C, short-term use is possible at up to 190° C.
- The carbon fibre reinforced plastic of the ESD variants is extremely flexible, fatigue-resistant, vibration-reducing and water-repellent, with good chemical resistance to most oils, greases, fuels and nonpolar solvents.
- ESD plastic tweezers are ideal for maximum surface protection when handling sensitive electronic components, micro-mechanical parts, as well as glass and ceramic components.
- ESD plastic tweezers: also available as a set (92 00 05 ESD).
| Technical Description | |
|---|---|

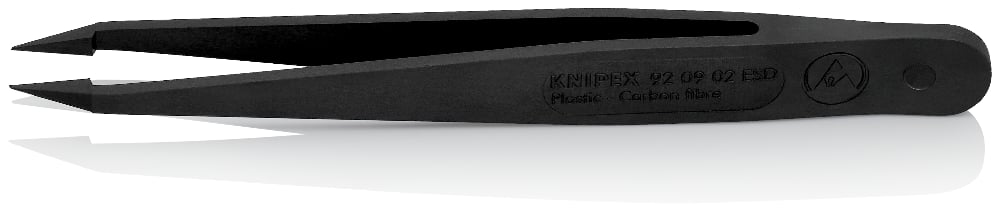

| Article No. | 92 09 02 ESD |
| EAN | 4003773086987 |
| Material | Carbon fibre-reinforced plastic |
| Gripping surfaces | smooth gripping surfaces |
| Handles | Smooth |
| Weight | 5 g |
| Dimensions | 115 x 11.5 x 15 mm |
| Standard | DIN EN 61340 -5-1 |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Surface | matt finish |
| Finish | straight |
| Tips width (A) | 0.5 mm |
| Tips width (B) | 0.3 mm |
| Tips width (C) | 9.5 mm |
| Tweezers tip version | needle-point |
| Corrosion-resistant | yes |
| Acid resistance | very good |
| ESD-tested | yes |
| VDE tested | no |
| Sectors | electronics |
| Magnetic | non-magnetisable (100%) |
| Behaviour | electrically dissipative |
