MPN:
9512200
Barcode:
4003773047834

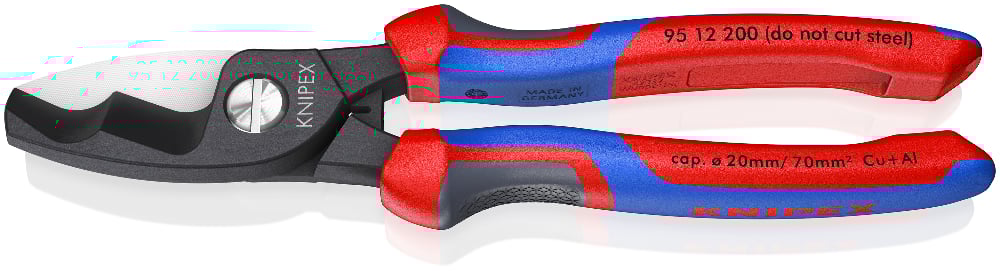

- Clean and smooth cut without crushing and deformation
- By dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables up to Ø 20 mm can be cut in one-hand operation
- Pinch guard prevents operators' fingers being pinched
- For cutting copper and aluminium cables up to Ø 20 mm (70 mm²)
- Not suitable for steel wire and hard drawn copper conductors
- Precision-ground, hardened blades
- Low handforce required due to favourable lever ratio and special blade geometry
- Adjustable bolted joint, self-retaining screw
- With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
| Technical Description | |
|---|---|
| Article No. | 95 12 200 |
| EAN | 4003773047834 |
| Shears | burnished |
| Handles | with comfort handles |
| Weight | 324 g |
| Dimensions | 200 x 46 x 20 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Cutting capacity copper cable, multiple-stranded | 70 mm² |
| Cutting capacity copper cable, multiple-stranded | Ø 20 mm |
| AWG | 2 / 0 |
Specifications
| Brand | KNIPEX |
