- Clean and smooth cut without crushing and deformation
- Easy cutting with one-hand operation
- Adjustable bolted joint, self-retaining screw
- For cutting copper and aluminium single conductors as well as multiple stranded cables
- Not suitable for steel wire and hard drawn copper conductors
- Precision-ground, hardened blades
- With guard
- Multifunctional tool for working on NYM cable from 3 x 1.5 mm² to 5 x 2.5 mm² (cutting and stripping)
- Universal stripping area for both solid conductor cross-sections
- Reliable alignment of the cable in the stripping area due to V-shaped blade geometry
| Technical Description | |
|---|---|
| Article No. | 95 41 165 |
| EAN | 4003773078609 |
| Shears | burnished |
| Handles | plastic coated |
| Weight | 220 g |
| Dimensions | 165 x 42 x 15 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Technical Description | |
|---|---|
 Cutting capacity copper cable, multiple-stranded |
35 mm² |
| Cutting capacity copper cable, multiple-stranded |
Ø 12 mm |
| Stripping capacities in square millimetres | 1.5 mm² / 2.5 mm² |
| AWG | 1 / 0 |
For fitters: cutting cable and stripping solid conductors
Multifunctional tool for NYM cable: for cutting and stripping (1.5 mm² and 2.5 mm²)
Unlike diagonal cutters with blades that meet at an obtuse angle, for example, Knipex cable shears cut using a scissors action.
This enables straight and clean cuts to be achieved, making them ideal for shortening cables in house wiring work: for NYM-J 3x1.5 mm, NYM-J 5x2.5 mm and all other stranded and finely stranded Cu and Al cable up to 35 mm². Due to the nature of their cutting edges, they should not be used to cut hard wire.

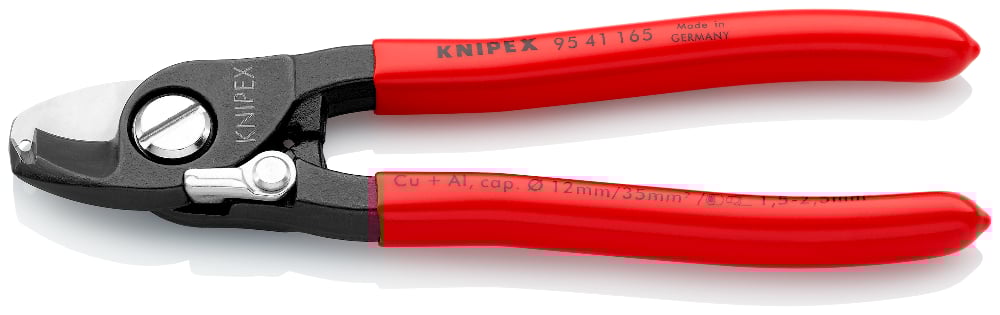

Knipex 95 41 165: for cutting cable with little physical effort
Protect the hands of the user: with the Knipex 95 41 165, the user only needs around one third of the manual force compared to conventional diagonal cutters due to the very sharp cutting edges. This reduced effort substantially reduces strain for the fitter, particularly when using the cable shears for prolonged periods, e.g. for building installation work. The ends of cables are cut so cleanly thanks to a scissors action and the precision ground cutting edges, that they can be directly processed. After dismantling, the wire stripping function on the Knipex 95 41 165 can be used.
Integrated wire stripping area, screwed, smooth operating joint and opening spring
The universal wire stripping area for both solid conductor cross-sections on the cutting edge tips also makes work easier, because they render one tool superfluous. These cable shears have the precisely running, bolted joint to thank for their very easy operation. The self-locking joint bolt can be tightened if necessary. The protected inset captive opening spring also contributes to the convenient cutting of larger cable cross-sections. The Knipex 95 41 165 saves one hand movement during each cutting operation: the opening.
| Cable shears for cutting solid, multicore and finely stranded Cu and Al cable up to 35 mm² |
| Due to their design, unsuitable for steel wire or hard drawn copper conductors |
| Cut smoothly, cleanly and without crushing thanks to very sharp, accurate cutting edges with precision cut |
| Easy cutting with one-handed operation; pinch protection prevents injuries to hands |
| Adjustable, self-locking bolted joint |
| Forged from high-grade special tool steel, oil-hardened |
| Integrated in the cutting edge, the cable centring, V-shaped stripping area for solid conductors of between 1.5 mm² and 2.5 mm² |
| Plastic-coated handles |
| Inset, captured opening spring; pawl |
| 165 mm long |
| Weight 220 g |
Knipex quality – the multifunctional cable shears with wire stripping area
The cable shears from Knipex with wire stripping area are a quality, versatile tool for house wiring work. Those who use tools a lot and professionally every day expect a quality that permits simple and safe work as well as a tool that lasts for many years of hard use.
The tool must also last for many years of hard use. We manufacture our tools from quality materials, machine them with high precision on modern machinery and harden them with careful multiple stage heat treatment.
Every pair of Knipex pliers represents more than 130 years of specialist know-how.
