- For cutting cables, stripping wire and crimping non-insulated crimp terminals according to DIN 46234
- With threaded holes for cutting copper and brass screws threaded M 2.6 / M 3 / M 3.5 / M 4 and M 5
- Bolted joint for higher stability and even movement
- Universal-crimping pliers for non-insulated cable connectors and plug connectors
- Cut cable and copper wire up to 6.0 mm²
- Net weight 222 g
- Manufactured from high strength special steel for optimum work results and a long tool life
- Screwed joint
- Polished pliers
- With multi-component grips
| Technical Description | |
|---|---|
| Article No. | 97 21 215 C |
| EAN | 4003773019701 |
| Pliers | Black lacquered |
| Handles | With multi-component handles |
| Weight | 290 g |
| Dimensions | 230 x 63 x 25 mm |
| REACH compliant | Does not contain SVHC |
| RoHS compliant | Not applicable |
| Application | Non-insulated terminals + cable connectors |
| Capacity in square millimetres | 0.5 — 6.0 mm² |
| Number of crimp profiles | 3 |
| AWG | 20 — 10 |
For cutting, wire stripping, crimping and shortening: the multifunctional pliers
An all-round tool with several useful aspects

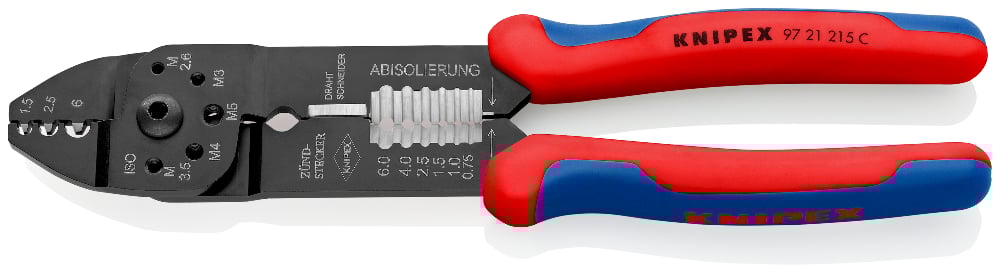

The Knipex 97 21 215 C crimping pliers are ideal in a professional and semi-professional environment, e.g. for smaller projects and tasks when the full range of tools is not available: on the car, in the camper van, on an airfield for model aircraft. Flat and relatively light at 222 g, you can easily take them with you in a jacket pocket or the outside pocket on work trousers. Thanks to the screwed, smooth-running and stable joint, all functions on these crimping pliers can be operated well.
Cutting and insulating fine wire, shortening threaded pins and screws
These universal crimping pliers can also be deployed before crimping: e.g. for cutting and stripping cable and wire. The suitably dimensioned openings prevent damage to the strands during wire stripping. A further function is available. As these crimping pliers are manufactured from high strength special steel, threaded pins and screws made of soft material can be accurately cut to length, while the thread is protected.
Crimping of non-insulated plug connectors and cable connectors
Dexterity is needed when crimping (crushing) non-insulated plug connectors and cable connectors, and it is important to use the right amount of force. On the one hand, cable connectors and plug connectors should have a sufficiently secure hold on the cable to prevent spark formation or faults caused by loose connections. On the other hand, the plug connectors and cable connectors must not be crushed and become damaged and unusable. Non-insulated plug connectors and cable connectors can be crimped well using the Knipex 97 21 215 C crimping pliers.
Brief overview
Crimping pliers from Knipex: high quality from universal to special pliers
Knipex offers a wide range of universal and special pliers for cutting to length, wire stripping and crimping.
Every pair of Knipex pliers is manufactured from special steel on modern machinery that is ideal suited to the respective application.
The great benefits of the tools and safe, comfortable use in everyday work are the results of decades of toolmaking experience, constant product development and the commitment by Knipex towards high quality standards.
Crimping of non-insulated connectors
Non-insulated cable connectors and plug connectors of between 1.5 and 6.0 mm² can be crimped for a secure hold with cables.
Shortening threaded pins and screws
Screws and threaded pins made of copper and brass can be shortened using the 9721215 C crimping pliers, while protecting the thread.
Cutting cable
Cable and wire can be accurately cut using the Knipex 97 21 215 C.
Custom-fit wire stripping
Cables with cross-sections 0.75 / 1.0 / 1.5 / 2.5 / 4.0 and 6.0 mm² can be stripped without damaging the cable.
