MPN:
974306
Barcode:
4003773031048

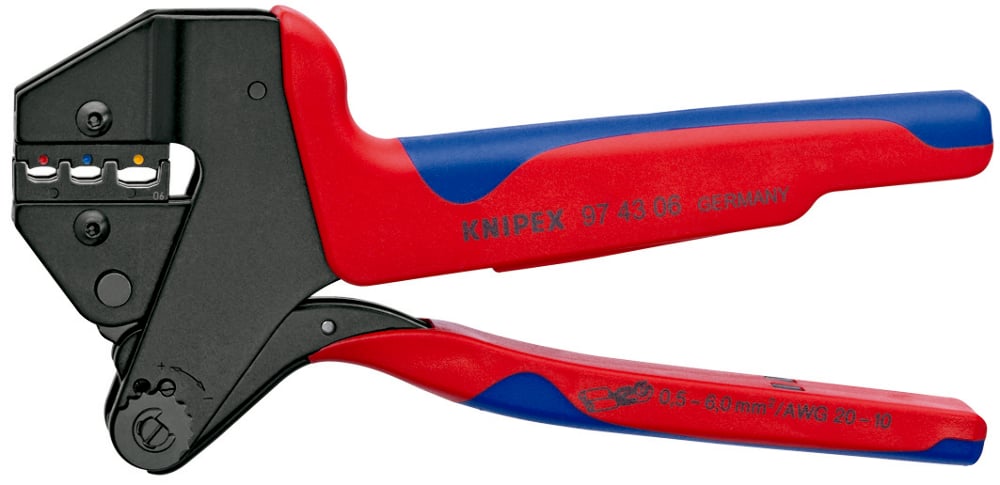

- Only one tool for almost 1000 crimping applications: usable with all crimping dies and locators 97 49 XX
- Almost parallel crimping motion
- Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
- Crimping pressure has been set precisely (calibrated) in the factory and can be adjusted
- Force magnified by lever action to ensure fatigue-free working
- Ergonomically designed handles
- Different locators for precise positioning of the connectors
- Crimping dies for applications that go beyond the range offered are available on request
- Tool body: high-grade chrome vanadium electric steel, oil-hardened
- Approved crimping according to UL in conjunction with KNIPEX wire ferrules 97 99 330 - 399
- The crimping die can be easily exchanged using two screws. Please refer to the instruction manual.
- With attached crimping dies for insulated terminals and plug connectors
| Technical Description | |
|---|---|
| Article No. | 97 43 06 |
| EAN | 4003773031048 |
| Pliers | burnished |
| Head | burnished |
| Handles | with multi-component handles |
| Weight | 610 g |
| Dimensions | 200 x 96 x 18 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | insulated terminals and plug connectors |
| Capacity in square millimetres | 0.5 — 6.0 mm² |
| Number of crimp profiles | 3 |
| AWG | 20 — 10 |
Specifications
| Brand | KNIPEX |
