- Application: for non-insulated, open lug connectors

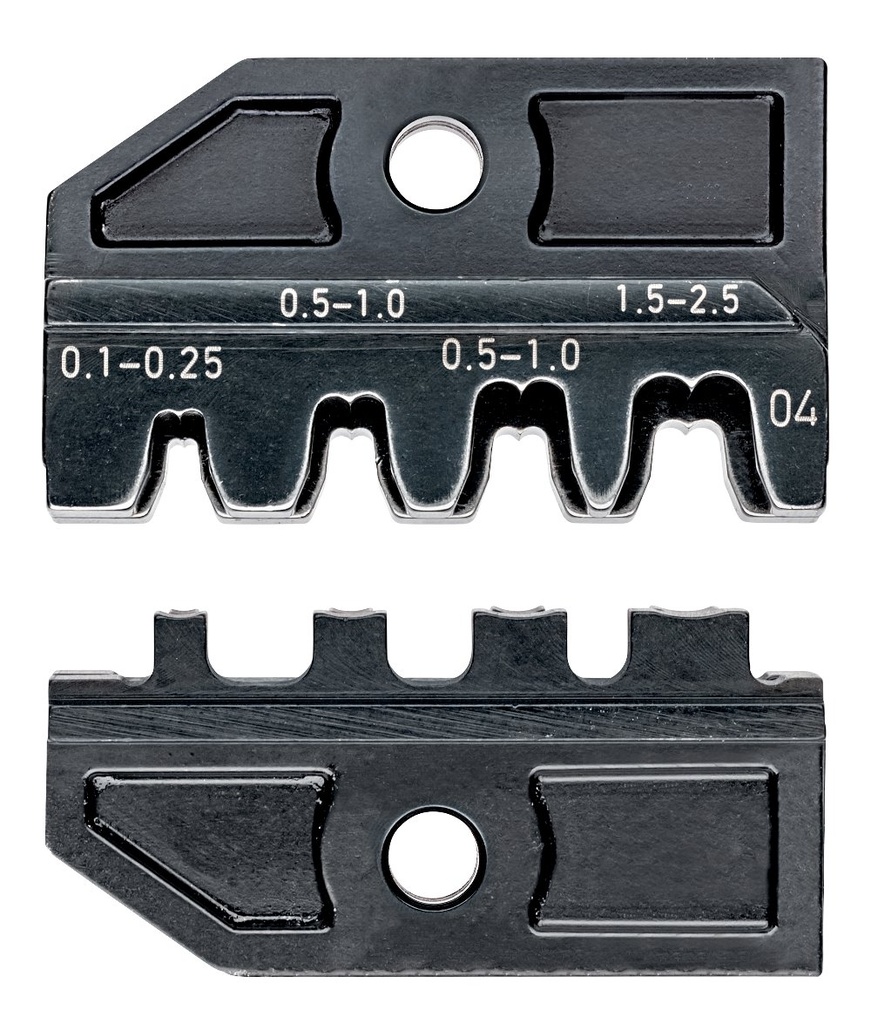

- > Crimpnest 1: 0,1 - 0,25mm² - Steckerbreite 2,8mm
- > Crimpnest 2: 0,5 - 1,0mm² - Steckerbreite 2,8mm
- > Crimpnest 3: 0,5 - 1,0mm² - Steckerbreite 4,8mm
- > Crimpnest 4: 1,5 - 2,5mm² - Steckerbreite 4,8mm
- The additionally available locator 97 49 94 makes it easier to guide the contact during the crimping process
- Not suitable for special contact series such as Tyco Electronics, Molex, JST etc.
- Application: non-insulated open plug type connectors (plug width 2.8 + 4.8 mm) 0.1 - 2.5 mm²
| Technical Description | |
|---|---|
| Article No. | 97 49 04 |
| EAN | 4003773030850 |
| Weight | 42 g |
| Dimensions | 50 x 10 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Application | non-insulated open plug type connectors - plug width 2.8 + 4.8 mm |
| Capacity in square millimetres | 0.1 — 2.5 mm² |
| Number of crimp profiles | 4 |
| AWG | 26 — 14 |
