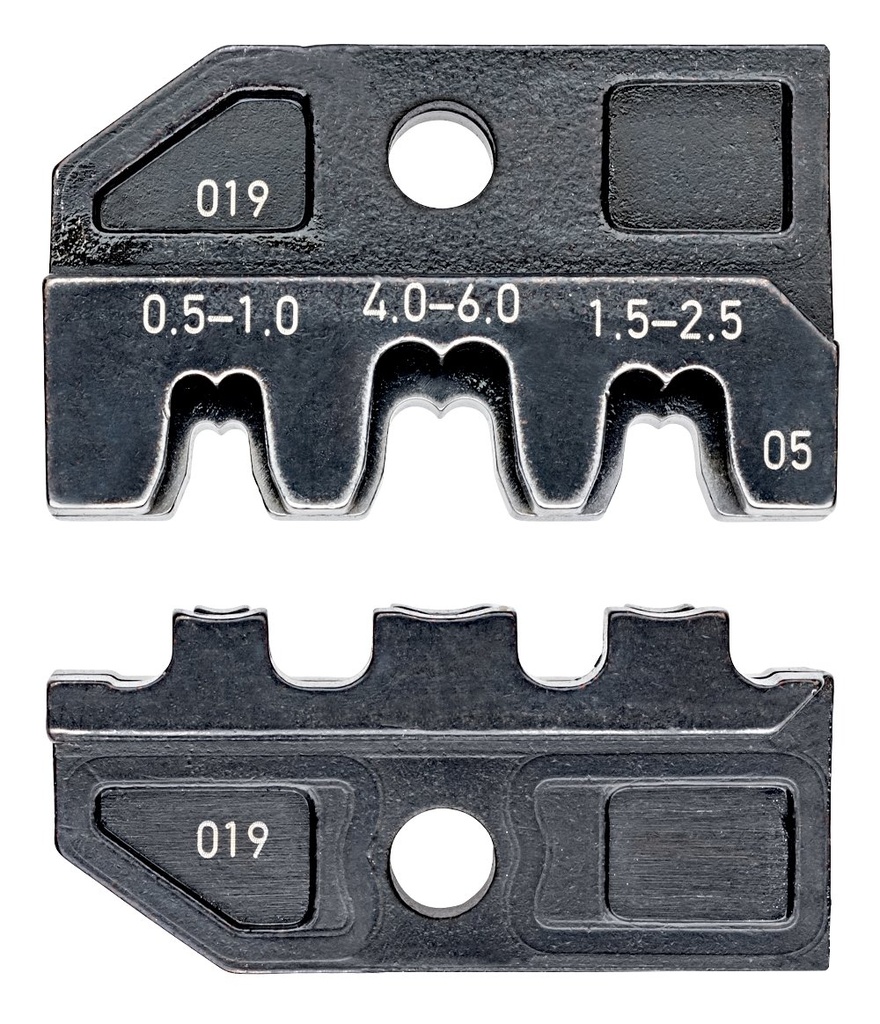

- Application: for non-insulated, open lug connectors
- > Crimpnest 1: 0,5 - 1,0mm² - Steckerbreite 4,8 und 6,3mm
- > Crimpnest 2: 1,5 - 2,5mm² - Steckerbreite 4,8 und 6,3mm
- > Crimpnest 3: 4,0 - 6,0mm² - Steckerbreite 4,8 und 6,3mm
- The additionally available locator 97 49 95 makes it easier to guide the contact during the crimping process
- Not suitable for special contact series such as Tyco Electronics, Molex etc.
- Anwendung: unisolierte, offene Steckverbinder (4.8 + 6.3 mm Steckerbreite) 0,5 - 6,0 mm²
| Technical Description | |
|---|---|
| Article No. | 97 49 05 |
| EAN | 4003773030867 |
| Weight | 46 g |
| Dimensions | 50 x 10 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Application | non-insulated open plug type connectors - plug width 4.8 + 6.3 mm |
| Capacity in square millimetres | 0.5 — 6 mm² |
| Number of crimp profiles | 3 |
| AWG | 20 — 10 |
