- For solder-free electrical connections
- The ingenious lever transmission reduces the handforce up to 30% compared with regular crimping pliers
- Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
- Precise, factory calibrated crimping pressure
- Two-hand operation for easy crimping of large conductor diameters
- Easy handling as a result of well balanced centre of gravity, angled head and ergonomically shaped handles
- Crimping die is not exchangeable
- Particularly user-friendly crimping pliers with lever transmission
- For insulated and non-insulated end sleeves (ferrules) with a capacity of 0.25 – 6.0 mm²
- Long lever arm for one-handed and two-handed operation
- Toggle lever system for high efficiency
- Integral lock (with release mechanism) only triggers on reaching the optimal crimping pressure
- Consistently high crimping quality due to (adjustable) crimping pressure calibration
- Knipex quality standards guarantee ideal work results and a long service life
- Firm grip in the hand thanks to ergonomic shape of the handle
- Chrome high-grade vanadium electric steel; oil-hardened
- Handles with non-slip plastic grips
- Length 250 mm
- Net weight 565 g
| Technical Description | |
|---|---|
| Article No. | 97 52 08 |
| EAN | 4003773025481 |
| Pliers | Burnished |
| Head | Burnished |
| Handles | With non-slip plastic grips |
| Weight | 565 g |
| Dimensions | 250 x 75 x 23 mm |
| REACH compliant | Contains SVHC |
| RoHS compliant | Not applicable |
| Application | Insulated and non-insulated wire ferrules |
| Capacity in square millimetres | 0.25 — 6 mm² |
| Number of crimp profiles | 5 |
| AWG | 24 — 10 |
Extremely user-friendly: precision requiring little time and effort
For the professional crimping of end sleeves (ferrules)

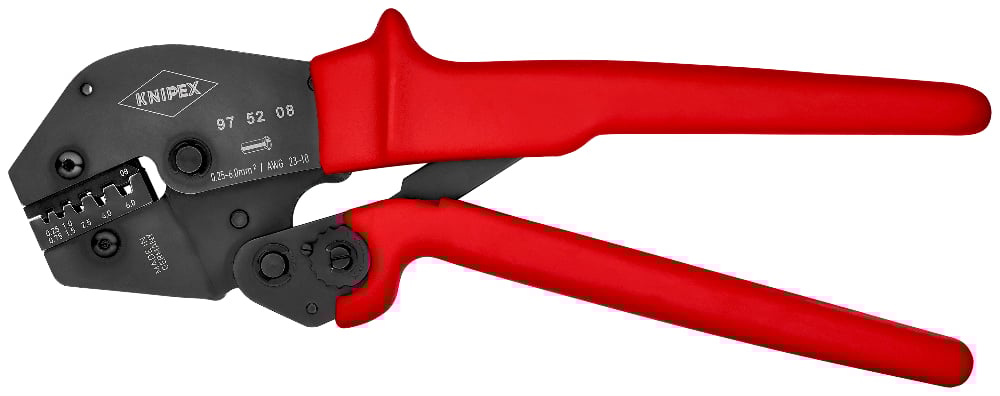

The Knipex 97 52 08 crimping pliers make the crimping of end sleeves (ferrules) simple, giving the user a tool that intuitively enables him to do everything right and creating connections that are mechanically and electrically safe and secure. Insulated and non-insulated end sleeves (ferrules) are crimped reliably to the conductors in the precision-machined crimp profiles. The ideal crimping pressure has already been set in the factory. The integral lock can be released where necessary, and the crimping pressure can be adjusted.
30 % less effort required – the leverage principle is used twice here
Up to 30 % less effort required compared to conventional crimping pliers, made possible by applied physics. The ergonomically shaped handles on the Knipex 97 52 08 result in a long lever arm. The pliers are also suitable for two-handed operation on large cable cross-sections. Special leverage is also integrated in the crimping pliers, so that even a low level of manual force gets to the end sleeve (ferrule) in a well reinforced and carefully measured way. The user can produce stable connections from conductors and end sleeves with little time and effort.
This is how it is done: three hand movements to produce a professional crimp connection
An insulated or non-insulated end sleeve is inserted. The lower handle is then pulled up using two fingers, until both jaws are resting on the plug connector to be crimped, thereby fixing it in the crimp profile. After inserting the stripped cable, crimping is carried out – accurately and permanently securely. The high Knipex quality standards and selection of materials with high-grade chrome vanadium electric steel ensure that all the qualities of these crimping pliers will last for a long time.
