- For solder-free electrical connections
- The ingenious lever transmission reduces the handforce up to 30% compared with regular crimping pliers
- Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
- Precise, factory calibrated crimping pressure
- Two-hand operation for easy crimping of large conductor diameters
- Easy handling as a result of well balanced centre of gravity, angled head and ergonomically shaped handles
- Crimping die is not exchangeable
- Extremely user-friendly crimping pliers with lever transmission
- For insulated and non-insulated end sleeves (ferrules) with a capacity of 35 – 50 mm²
- Long lever arm for one-handed and two-handed operation
- Toggle lever system for high efficiency
- Integral lock (with release mechanism) only triggers on reaching the optimal crimping pressure
- Consistently high crimping quality due to (adjustable) crimping pressure calibration
- Knipex quality standards ensure ideal work results and a long service life
- Firm grip in the hand thanks to ergonomic shape of the handle
- Chrome high-grade vanadium electric steel; oil-hardened
- Handles with non-slip plastic grips
- Length 250 mm
- Net weight 567 g
| Technical Description | |
|---|---|
| Article No. | 97 52 19 |
| EAN | 4003773052142 |
| Pliers | Burnished |
| Head | Burnished |
| Handles | With non-slip plastic grips |
| Weight | 567 g |
| Dimensions | 250 x 65 x 23 mm |
| REACH compliant | Contains SVHC |
| RoHS compliant | Not applicable |
| Application | Insulated and non-insulated wire ferrules |
| Capacity in square millimetres | 35 — 50 mm² |
| Number of crimp profiles | 2 |
| AWG | 2 / 0 |
Extremely user-friendly: precision requiring little time and effort
For the professional crimping of end sleeves (ferrules)

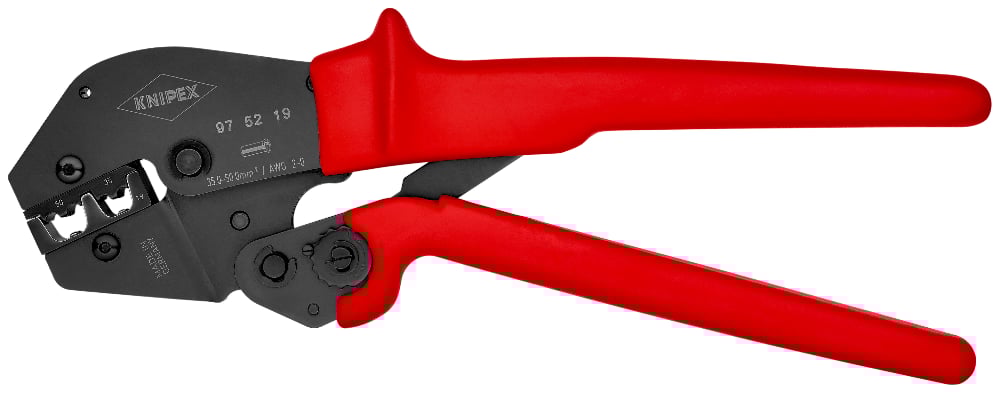

With the KNIPEX 97 52 19 crimping pliers, the crimping of end sleeves (ferrules) – also with large cross-sections – is remarkably simple. With this tool, the user intuitively does everything right, creating electrically safe connections.
Insulated and non-insulated end sleeves (ferrules) are reliably crimped to conductors in the precision-machined crimp profiles. The ideal crimping pressure has already been set in the factory.
The pliers only open once the set crimping pressure has been reached. This is ensured by the automatic integral lock. Where necessary, the integral lock has a release mechanism. The crimping pressure can be adjusted.
30 % less effort required – the leverage principle is used twice here
Applied physics are the reason why the Knipex 97 52 19 require up to 30 % less effort compared to conventional crimping pliers. Their ergonomic handles are shaped to produce a long lever arm. The pliers are long enough for two-handed operation on large cable cross-sections. Special leverage is also integrated in the crimping pliers, so that even a low level of manual force gets to the end sleeve (ferrule) in a well reinforced and carefully measured way. The user can produce stable connections from conductors and end sleeves with little time and effort.
A professional crimp connection in three simple steps
First step: an insulated or non-insulated end sleeve is inserted. Second step: the lower handle is pulled up using two fingers, until both jaws are resting on the plug connector to be crimped, thereby fixing it in the crimp profile. Step three: after inserting the stripped cable, crimping is carried out – accurately and securely. The high Knipex quality standards and selection of materials with high-grade chrome vanadium electric steel ensure that all the qualities of these crimping pliers will last for a long time.
