- Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
- Precise, factory calibrated crimping pressure
- High crimping force due to efficient lever action
- Good handling due to favourable handle position, low weight, short design and ergonomically shaped handles
- Crimping die is not exchangeable

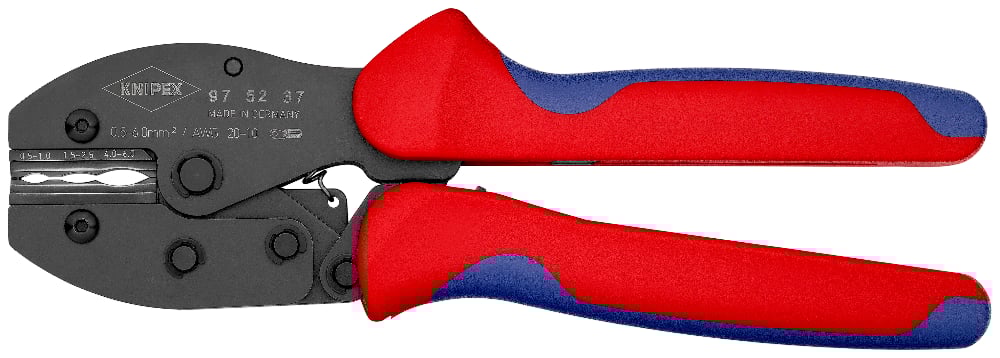

- Crimping pliers for crimping heat shrinkable sleeve connectors
- Capacity 0.5 - 6.0 mm²
- 3 crimping dies
- 220 mm long
- Net weight 478 g
- Crimping pressure accurately calibrated in the factory, and adjustable where necessary
- With integral lock, release mechanism
- Manufactured from high-grade chrome vanadium electric steel, oil-hardened
- With multi-component grips
| Technical Description | |
|---|---|
| Article No. | 97 52 37 |
| EAN | 4003773063193 |
| Pliers | Burnished |
| Handles | With multi-component handles |
| Weight | 478 g |
| Dimensions | 220 x 70 x 21 mm |
| REACH compliant | Contains SVHC |
| RoHS compliant | Not applicable |
| Application | Insulated connectors with heat shrinkable sleeve |
| Capacity in square millimetres | 0.5 — 6.0 mm² |
| Number of crimp profiles | 3 |
| AWG | 20 — 10 |
Crimping Pliers Overview
Crimping pliers specially for heat shrinkable sleeve connectors from 0.5 to 6.0 mm².
Precise crimping – which is why they are called Knipex PreciForce.
Crimping is high-precision work. Crimp profile and crimping pressure must be precisely matched to the connectors and cable used to create a connection that is permanently mechanically and electrically safe and secure. The Knipex PreciForce all have a light, compact design with toggle lever reinforcement of manual force and precision crimp profile. The result: ideal, hand-friendly amount of pressure is exerted with precision on the connector being connected to the cable– even with much repeated crimping.
Integral lock for accurate repeated crimping: the PreciForce dispenses the crimping pressure.
With the Knipex PreciForce, the user can concentrate completely on crimping because the pliers do the job of measuring manual force for him, ensuring the optimal crimping pressure. The crimping pressure of the pliers is optimally set (calibrated) in the factory to the heat shrinkable sleeve connector. The integral lock blocks premature opening of the pliers before the set upper limit has been achieved using hand pressure. The pliers open automatically only on reaching the preset crimping pressure. The integral lock can be released manually, and the crimping pressure can be adjusted if need be.
Accurately machined, durable crimp profiles for heat shrinkable sleeve connectors.
With the Knipex PreciForce series, every crimp application has its own version with specially machined crimp profile. One specialist pair of pliers, one application. The Knipex PreciForce is manufactured from special high-grade chrome vanadium electric steel and is oil-hardened. The Knipex PreciForce 97 52 37 is therefore a purchase that will last for a long time and for a special field of application: the crimping of heat shrinkable sleeve connectors from 0.5 to 6.0 mm².
