MPN:
975263
Barcode:
4003773050148

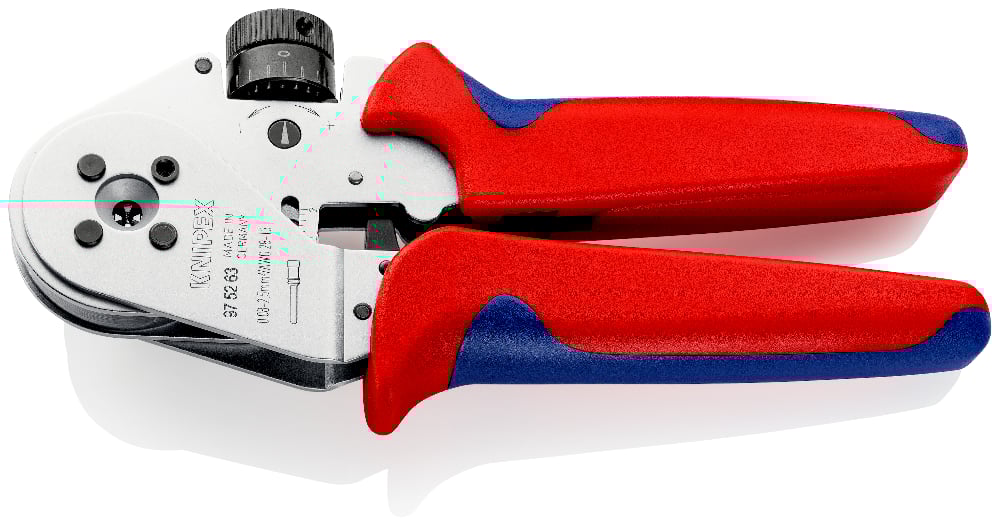

- For crimping turned contacts
- Four-mandrel crimping for top-quality crimp connections
- Mandrel gauge to check the basic setting
- Repetitive, high crimping quality due to ratchet mechanism (unlockable)
- Optimum transmission of force due to highly effective lever action for fatigue-reduced operation
- High operation comfort thanks to handy shape
- Fine adjustment of pressure depending on the conductor's diameter by means of adjusting wheel
- Pliers in a plastic case with foam insert and standard locator for precise positioning of the contacts
| Technical Description | |
|---|---|
| Article No. | 97 52 63 |
| EAN | 4003773050148 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | with multi-component handles |
| Weight | 388 g |
| Dimensions | 180 x 67 x 37 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | turned contacts |
| Capacity in square millimetres | 0.08 — 2.5 mm² |
| AWG | 28 — 14 |
| Number of crimp profiles | 1 |
| Max. contact diameter | 5 mm |
