MPN:
975265DG
Barcode:
4003773063216

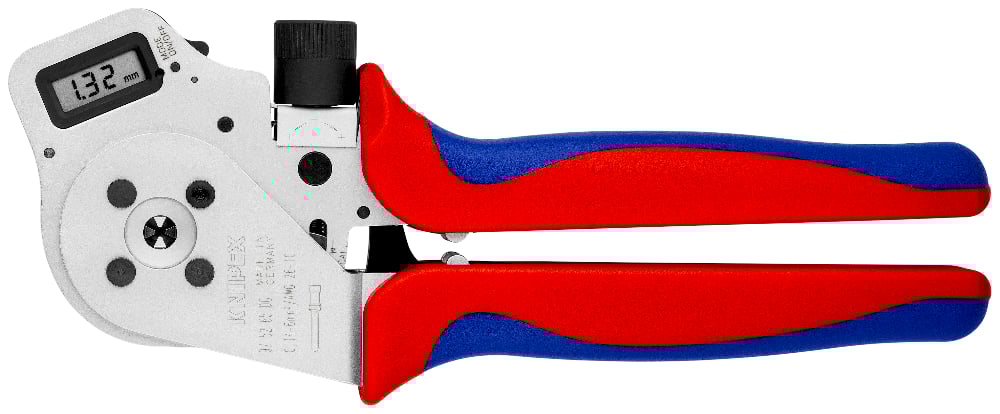

- For crimping turned contacts
- Four-mandrel crimping for top-quality crimp connections
- Mandrel gauge to check the basic setting
- Repetitive, high crimping quality due to ratchet mechanism (unlockable)
- Optimum transmission of force due to highly effective lever action for fatigue-reduced operation
- High operation comfort thanks to handy shape
- Crimping capacity can be adjusted in increments of 0.01 mm
- With digital display of the preset crimping capacities and possibility of re-calibration via RESET function with electronic wear monitoring
- Adjustment in mm, inches or comparable selection positions according to MIL
- With table for calculating the settings
- Pliers in a plastic case with foam insert and standard locator for precise positioning of the contacts
| Technical Description | |
|---|---|
| Article No. | 97 52 65 DG |
| EAN | 4003773063216 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | with multi-component handles |
| Weight | 633 g |
| Dimensions | 250 x 86 x 19 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | turned contacts (Harting; Ilme; Phoenix; Amphenol; Walther; HTS; Contact; Weidmüller) |
| Capacity in square millimetres | 0.14 — 6 mm² |
| AWG | 26 — 10 |
| Number of crimp profiles | 1 |
| Max. contact diameter | 7.5 mm |
Specifications
| Brand | KNIPEX |
