MPN:
975504
Barcode:
4003773084853

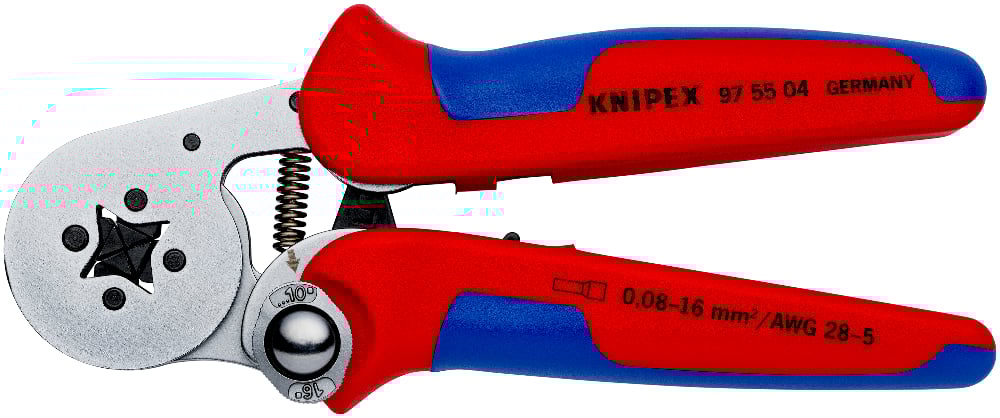

- For wire ferrules up to 16 mm²
- Adjusts automatically to the wire ferrule size for precise and quick crimping
- Crimping of wire ferrules according to DIN 46228 parts 1+4
- UL approval in conjunction with KNIPEX wire ferrules 97 99 330 - 399
- Repetitive, high crimping quality due to ratchet mechanism (unlockable)
- Precise, factory calibrated crimping pressure
- High crimping force due to efficient lever action
- Narrow handle width
- Ergonomic and comfortable handle, smooth operation and lightweight
- Special quality chrome vanadium electric steel, oil-hardened
- With square compression
- Also for Twin wire ferrules up to 2 x 6 mm² or 2 x AWG 12
| Technical Description | |
|---|---|
| Article No. | 97 55 04 |
| EAN | 4003773084853 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | with multi-component handles |
| Weight | 459 g |
| Dimensions | 180 x 77 x 21 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
| Application | Wire ferrules |
| Capacity in square millimetres | 0.08 — 16 mm² |
| Number of crimp profiles | 1 |
| AWG | 28 — 6 |
Specifications
| Brand | KNIPEX |
