- For crimping wire ferrules according to DIN 46228 parts 1 + 4 in the range 0.5 to 6 mm²
- Ideal for work in confined areas, e.g. in narrow and deep switch boxes
| Technical Description | |
|---|---|
| Article No. | 97 81 180 |
| EAN | 4003773019794 |
| Head | polished |
| Handles | plastic coated |
| Weight | 209 g |
| Dimensions | 180 x 50 x 13 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Technical Description | |
|---|---|
| Application | Wire ferrules |
| Capacity in square millimetres | 0.5 — 6.0 mm² |
| Number of crimp profiles | 1 |
| AWG | 20 — 10 |

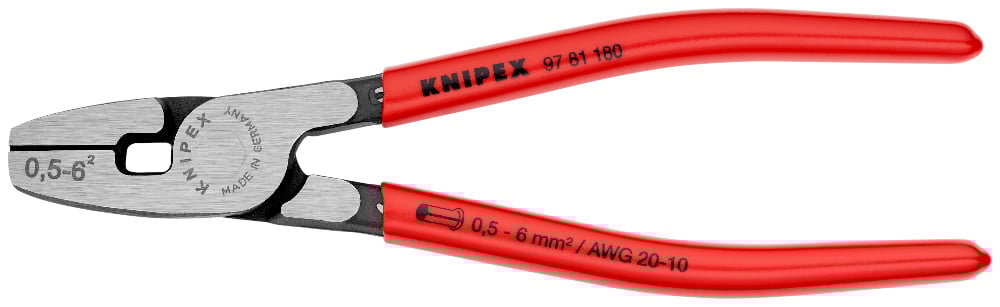

Proven robust construction: Knipex crimping pliers 97 81 180
V-shaped crimping die – front loading for wire-end ferrules, 0.5 to 6 mm²
The Knipex 97 81 180 crimping pliers with the V-shaped longitudinal crimping die for front loading is particularly useful if you can only reach the single wires from the front. The wires and the wire-end ferrules on them are inserted into the pliers at the front and crimped. It is possible to crimp in this position even in tight spaces.
Forged and hardened using special tool steel
The Knipex 97 81 180 crimping pliers are made to last. They are forged from special tool steel and precisely shaped through milling processes. The transverse grooves in the crimping die effectively profile the wire-end ferrules during crimping so that standard extraction forces are always achieved.
Lightweight, compact dimensions, proven construction – ideal repair tool
Weighing 227 g with a length of 180 mm, Knipex 97 81 180 crimping pliers are compact enough to carry at all times. Installers/fitters carry them in their jacket pockets or tool belt pouches during installation and repair work. This tool is ideal for occasional maintenance, repairs or additions to electrical systems.
| Solid crimping pliers for wire ends |
| For pressing wire-end ferrules DIN 46228 part 1 + 4, range 0.5 to 6 mm² |
| Also for twin wire-end ferrules from 2x0.25 mm² to 2x2.5 mm² |
| Handles with anti-slip plastic coating |
| Special tool steel, forged and oil-hardened |
| V-shape crimping die |
| Length 180mm |
| Net weight 227 g |
Crimping pliers from Knipex – for reliable connections
Crimping pliers from Knipex come in a variety of types. All crimping pliers from Knipex have the same ultimate goal, regardless of type and technical details: safety at the wire end and safety in the electrical connections. Knipex quality, even with a very slim and simply constructed crimping pliers like the Knipex 97 81 180, ensures lasting safe connections, provided the tool is used correctly. Expectations on professional users are high. Professionals who use tools a lot every day rely on a quality that enables them to work easily and safely and that can withstand many years of service. That's why our crimping pliers 97 81 180 are forged from high-quality special tool steel with high precision on modern machine tools. All pliers from Knipex embody over 130 years of specialist expertise.
