MPN:
979104V01
Barcode:
4003773088998

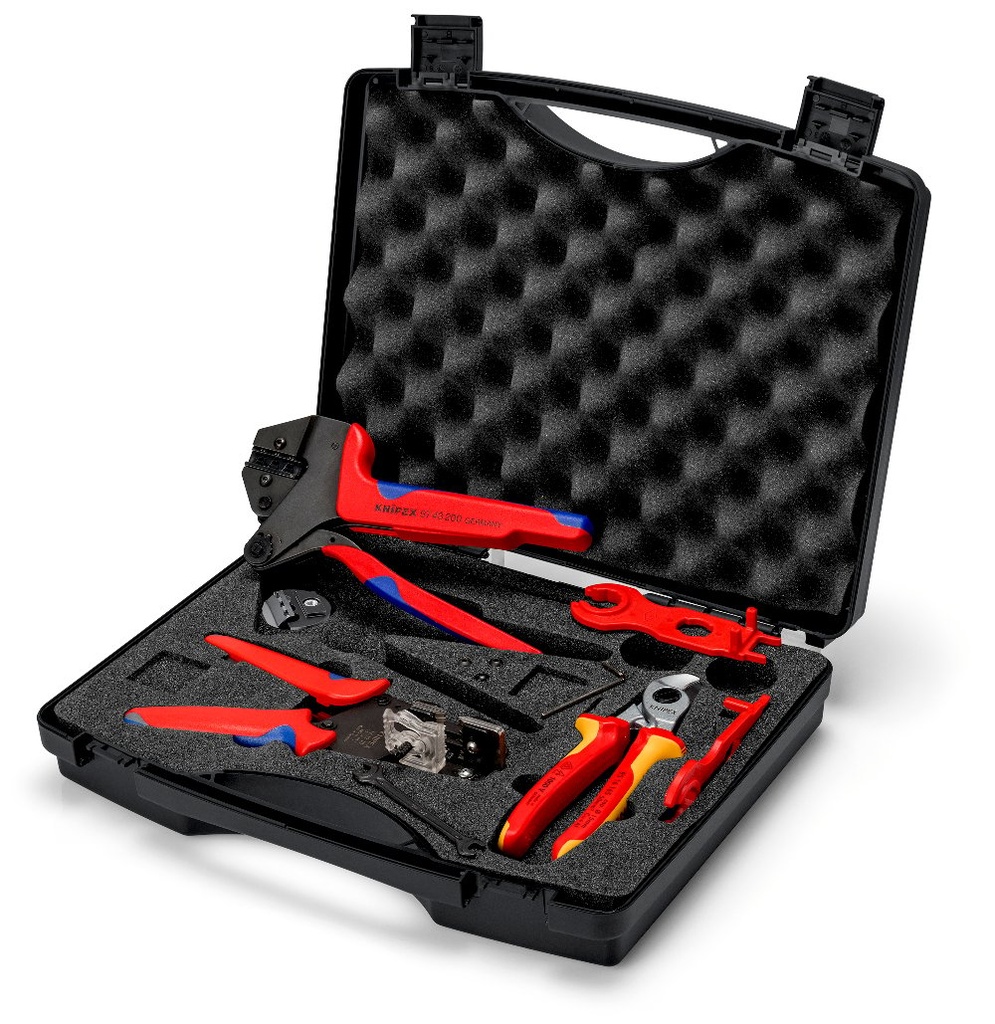

- Equipped with tools for photovoltaics
- With Crimp System Pliers 97 43 200 A for interchangeable crimping dies, crimping pressure is precisely set at the factory (calibrated)
- Cable shears 95 16 165 for copper cables up to Ø 15 mm
- Assembly tool (Allen key) for changing the crimping dies
- With set of mounting tools 97 49 66 2 to loosen and tighten cable glands of MC4® solar plugs and to open the locking of MC4® housing
- Foam insert with recesses for tools, 2 crimping dies and 2 locators
- Impact-resistant plastic case
- External dimensions: 345 x 80 x 280 mm (W x H x D)
- Crimping die 97 49 66 (2.5 / 4.0 /6.0 mm²) for solar connector MC4®(Multi-Contact), locator 97 49 66 1 and assembly tool set 97 49 66 2
- Precision stripping pliers 12 12 11 (1.5 / 2.5 / 4.0 / 6.0 mm²) with adapted blades for smaller stripping capacities
| Technical Description | |
|---|---|
| Article No. | 97 91 04 V01 |
| EAN | 4003773088998 |
| Weight | 2,010 g |
| Dimensions | 280 x 80 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
Specifications
| Brand | KNIPEX |
