MPN:
979104V02
Barcode:
4003773089001

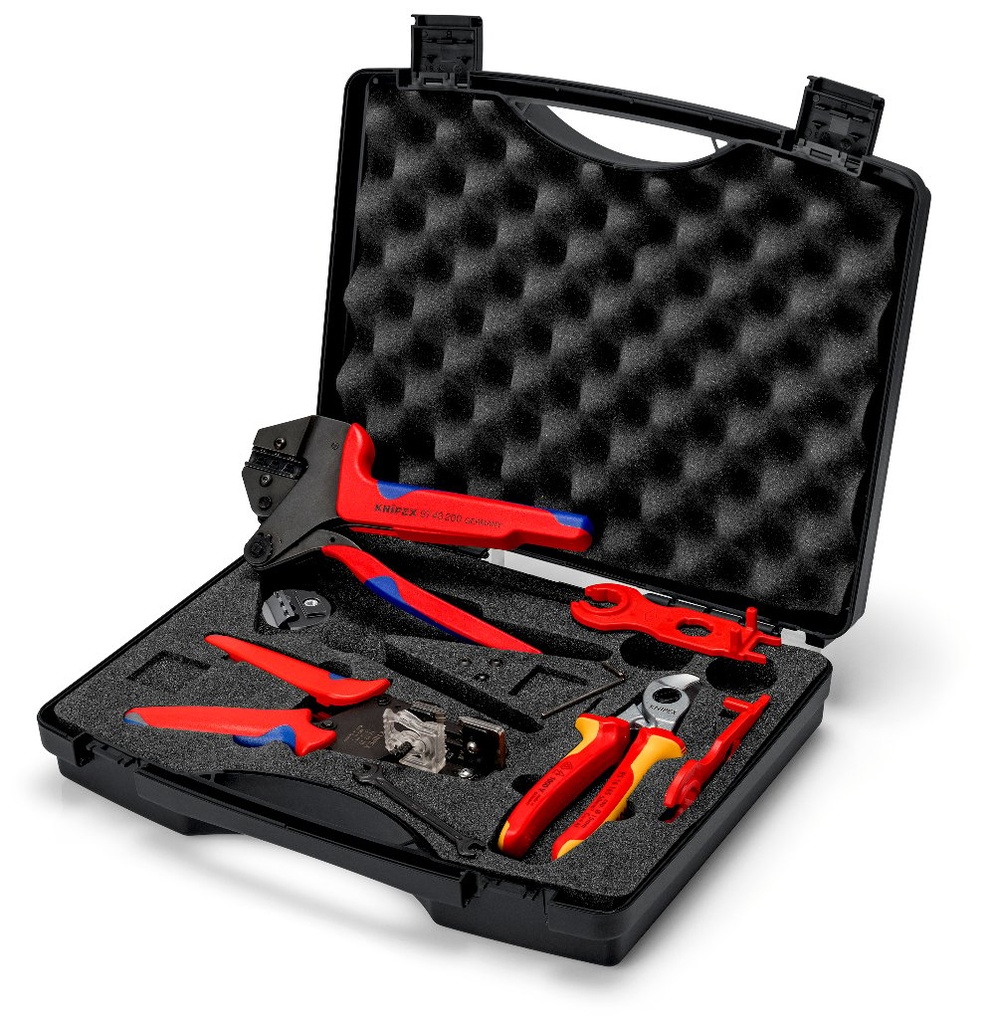

- Equipped with tools for photovoltaics
- With Crimp System Pliers 97 43 200 A for interchangeable crimping dies, crimping pressure is precisely set at the factory (calibrated)
- Cable shears 95 16 165 for copper cables up to Ø 15 mm
- Assembly tool (Allen key) for changing the crimping dies
- With set of mounting tools 97 49 66 2 to loosen and tighten cable glands of MC4® solar plugs and to open the locking of MC4® housing
- Foam insert with recesses for tools, 2 crimping dies and 2 locators
- Impact-resistant plastic case
- External dimensions: 345 x 80 x 280 mm (W x H x D)
- Crimping die 97 49 71 (4.0 / 6.0 /10.0 mm²) for solar connectors MC4® (Multi-Contact), locator 97 49 71 1 and assembly tool set 97 49 66 2
- Precision stripping pliers 12 12 12 (4.0 / 6.0 / 10.0 mm²) with adapted blades for larger stripping capacities
| Technical Description | |
|---|---|
| Article No. | 97 91 04 V02 |
| EAN | 4003773089001 |
| Weight | 2,010 g |
| Dimensions | 280 x 80 mm |
| REACH compliant | contains SVHC |
| RoHS compliant | not applicable |
Specifications
| Brand | KNIPEX |
