MPN:
ir61224
Barcode:
9312591022394

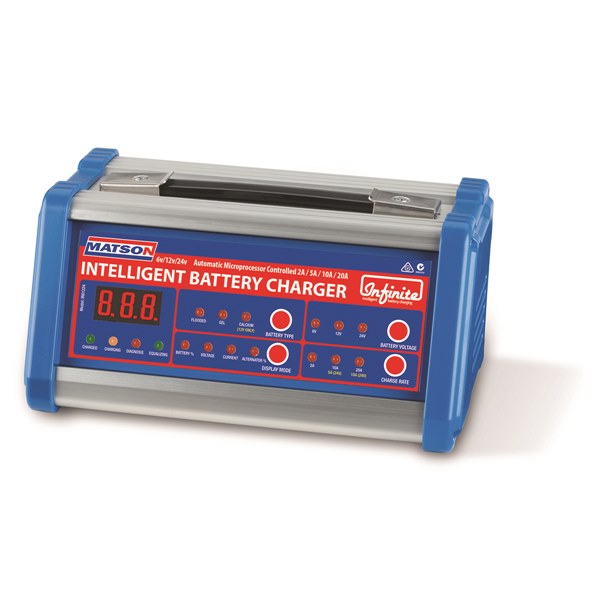

- 6/12/24 Volt Charger.
- Selectable charge rate up to 20A @ 12V and 10A @ 24V
- Chemistry selectable: GEL, Flooded (SLA, Deep Cycle, AGM), Calcium
- Electronic Touch Button Control
- LED Display shows voltage, current (amps), battery capacity and fault diagnosis
- 7 stage charging for optimum battery conditioning and extended battery life.
- Click here to download the manual
ATTRIBUTES
| Absorption | YES |
|---|---|
| Alternator Function | Alternator Test |
| Analysis / Fault Find | YES |
| Case Construction | Aluminium |
| Charge Rate | 14.1V (Gel), 14.7V (Flooded), 15.1V (Calcium) |
| Charging Stage | 7 Stage |
| Desulphation | High Frequency Pulse charge (Dependent on Diagnosis) |
| Dimensions | 246 x 146 x 50mm |
| Equalisation | YES |
| Fan Cooled | YES |
| Input Voltage - DC | 240VAC, 50Hz |
| Min Start Voltage | 1.5 Volt |
| Output Current | 6/12 Volt, 2/10/20 Amp. 24 Volt, 2/5/10 Amp Selectable |
| Output Voltage | 6/12/24 Volt DC Selectable |
| Permanent Mount | No |
| Recondition | YES |
| Soft Start | Yes |
| Type | Flooded, SLA, Deep Cycle, AGM, Calcium, GEL (Calcium 12V only, GEL 6/12V only) |
| Warranty | 12 Months |
| Weight | 2.4kg |
Specifications
| Brand | MATSON |
