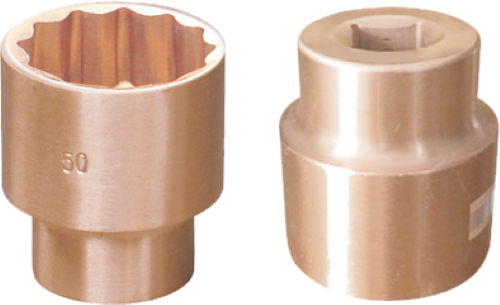

1/2 Inch Drive 24mm Socket 12 Point (Copper Beryllium)
1/2 Inch Drive 24mm Socket 12 Point (Copper Beryllium)
Brand: T&E Tools |
MPN: CB104-24 |
- DIN3120 Die forged.
- Suitable for use where space is narrow or deep concavity to tighten or loosen bolts and nuts.
Sockets (C=1/2"):
Item No. | S (mm) | L (mm) | Be-Cu (g) | Al-Cu (g) |
---|---|---|---|---|
CB104-6 | 6 | 40 | 75 | 69 |
CB104-7 | 7 | 40 | 77 | 70 |
CB104-8 | 8 | 40 | 77 | 70 |
CB104-9 | 9 | 40 | 78 | 71 |
CB104-10 | 10 | 40 | 78 | 71 |
CB104-11 | 11 | 40 | 79 | 72 |
CB104-12 | 12 | 40 | 79 | 72 |
CB104-13 | 13 | 40 | 80 | 73 |
CB104-14 | 14 | 40 | 80 | 73 |
CB104-15 | 15 | 40 | 94 | 85 |
CB104-16 | 16 | 40 | 94 | 85 |
CB104-17 | 17 | 40 | 94 | 85 |
CB104-18 | 18 | 42 | 94 | 85 |
CB104-19 | 19 | 42 | 110 | 100 |
CB104-20 | 20 | 42 | 120 | 105 |
CB104-21 | 21 | 43 | 125 | 110 |
CB104-22 | 22 | 43 | 130 | 115 |
CB104-23 | 23 | 43 | 150 | 135 |
CB104-24 | 24 | 43 | 165 | 145 |
CB104-25 | 25 | 43 | 180 | 160 |
CB104-26 | 26 | 43 | 200 | 180 |
CB104-27 | 27 | 46 | 215 | 190 |
CB104-28 | 28 | 46 | 225 | 200 |
CB104-29 | 29 | 46 | 235 | 210 |
CB104-30 | 30 | 46 | 250 | 220 |
CB104-32 | 32 | 46 | 295 | 260 |
CB104-1002 | 5/16 | 40 | 70 | 70 |
CB104-1004 | 3/8 | 40 | 78 | 71 |
CB104-1006 | 7/16 | 40 | 79 | 72 |
CB104-1008 | 1/2 | 40 | 80 | 73 |
CB104-1010 | 9/16 | 40 | 80 | 73 |
CB104-1012 | 5/8 | 40 | 88 | 80 |
CB104-1014 | 11/16 | 40 | 93 | 85 |
CB104-1016 | 3/4 | 42 | 110 | 100 |
CB104-1018 | 13/16 | 43 | 125 | 110 |
CB104-1020 | 7/8 | 43 | 130 | 115 |
CB104-1022 | 15/16 | 43 | 165 | 145 |
CB104-1024 | 1 | 43 | 190 | 170 |
CB104-1026 | 1-1/16 | 46 | 215 | 190 |
CB104-1028 | 1-1/4 | 46 | 295 | 260 |
CB104-1030 | 1-7/16 | 50 | 330 | 300 |
